- Unit ID: IS220PRTDH1B
- Brand: General Electric
- Part Series: Mark VIe
- Role: RTD Input Pack
- Applications: Simplex Only
- RTD Inputs: 8
- Input Type: 3-Wire
- Excitation Current: 10mA
- Max RTD Distance: 300m
- Ethernet Type: 10/100
- Ethernet Ports: 2
- Product Manual: GEH-6721G
-
Can the IS220PRTDH1B work with more than 8 RTD inputs?
- Yes, this is possible via the TRTD terminal board.
-
If two IS220PRTDH1B packs can be installed on a terminal board, how is dual redundancy not supported?
- Each of the packs is operating in simplex and handling its own group of 8 inputs.
-
Does the IS220PRTDH1B use its IR port?
- Yes, this infrared port is used for local diagnostic serial communications.
⭐⭐⭐⭐⭐ 5.0
The IS220PRTDH1B can safely and reliably communicate with RTDs very far away from the turbine I/O cabinet. This, alongside various other features like automatic calibration, makes this one of the most versatile I/O packs of its kind. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS220PRTDH1B Mark VI IS220 |
Description |

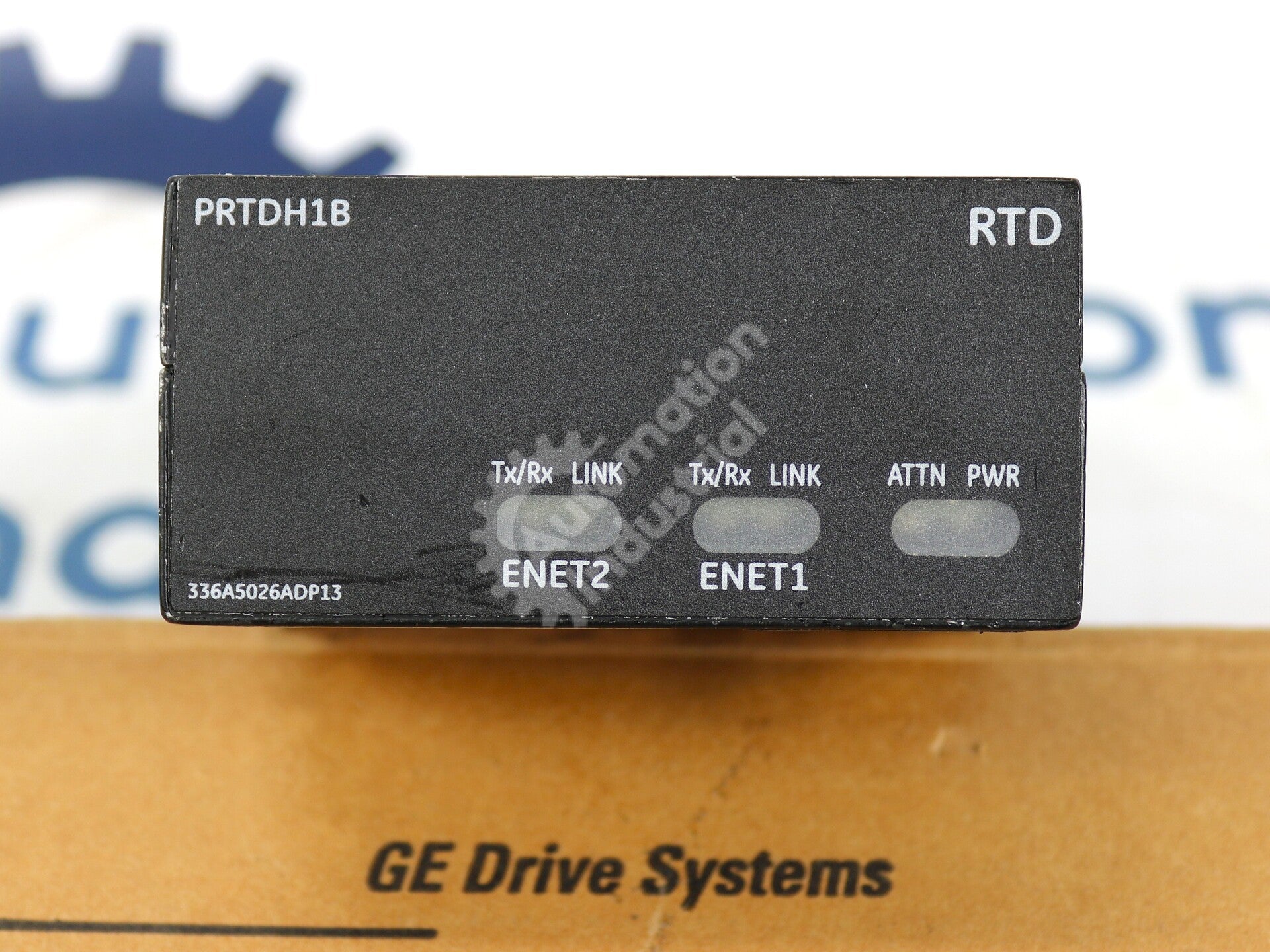

IS220PRTDH1B By General Electric RTD Input and Output Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit ID | IS220PRTDH1B |
| Brand | General Electric |
| Part Series | Mark VIe |
| Role | RTD Input Pack |
| Applications | Simplex Only |
| RTD Inputs | 8 |
| Input Type | 3-Wire |
| Excitation Current | 10mA |
| Max RTD Distance | 300m |
| Ethernet Type | 10/100 |
| Ethernet Ports | 2 |
| Product Manual | GEH-6721G |
Frequently Asked Questions | |
| Can the IS220PRTDH1B work with more than 8 RTD inputs? Yes, this is possible via the TRTD terminal board. | |
| If two IS220PRTDH1B packs can be installed on a terminal board, how is dual redundancy not supported? Each of the packs is operating in simplex and handling its own group of 8 inputs. | |
| Does the IS220PRTDH1B use its IR port? Yes, this infrared port is used for local diagnostic serial communications. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS220PRTDH1B can safely and reliably communicate with RTDs very far away from the turbine I/O cabinet. This, alongside various other features like automatic calibration, makes this one of the most versatile I/O packs of its kind. -Automation Industrial Quality Assurance Manager |
|
