- Model Number: IS420PFFAH1B
- Made By: GE Vernova
- Product Series: Mark VIe and Mark VIeS Control Systems
- Functional Description: Foundation Fieldbus Linking Device
- Simplex Support: Yes
- Hot Backup Support: Yes
- Fieldbus H1 Ports: 4
- LAN Ports: 1
- Serial Connectors: 1
- Nominal Voltage: 24VDC
- Voltage Range: 18-32VDC
- Ambient Operating Temperature: 0° to 55°C
- Product Manual: GEH-6721
-
What is the difference between the IS420PFFAH1B and an "H1A" model?
- The IS420PFFAH1B is the newer revision which made the "H1A" model obsolete.
-
Is the IS420PFFAH1B backwards-compatible with the "H1A" model?
- Yes, though these two units can not be used to form a hot backup together.
-
How many field devices are supported per H1 segment on the IS420PFFAH1B?
- These segments provide support for up to 16 field devices each.
⭐⭐⭐⭐⭐ 5.0

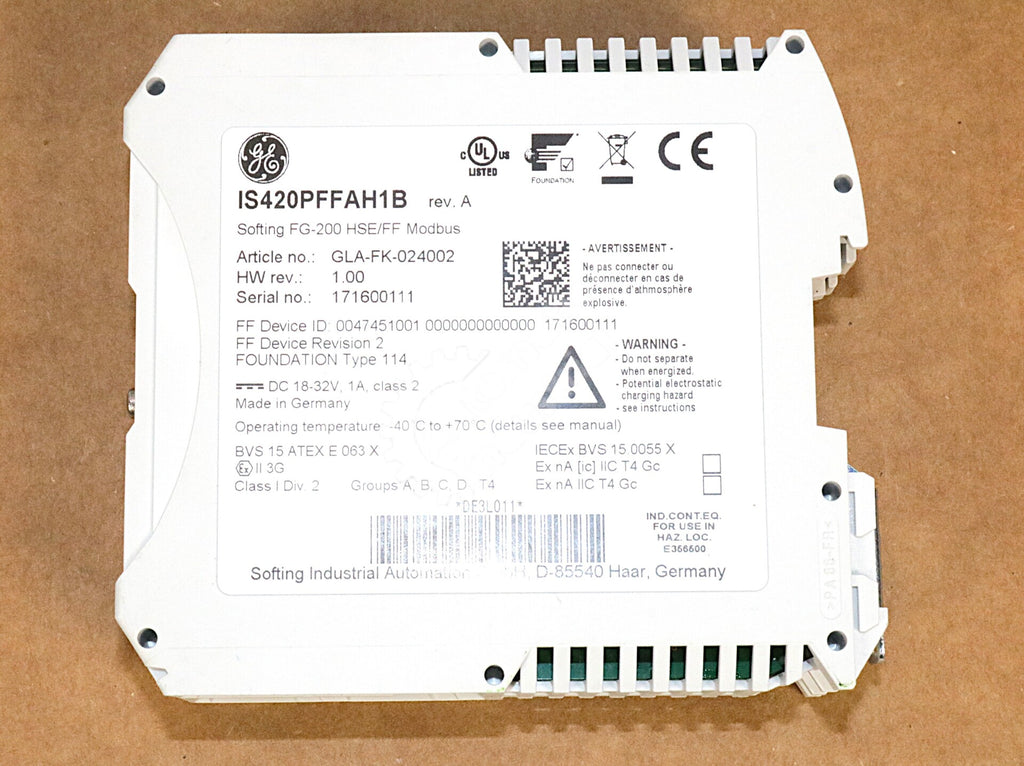

The IS420PFFAH1B serves as a crucial link between the H1 and HSE components of a larger Foundation fieldbus network. This unit is capable of connecting up to 4 of these H1 links at a time, helping to condense the network into more manageable pieces. This device can also be used in a redundant setup to provide an additional layer of protection against unexpected failure. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS420PFFAH1B Mark VIe & Mark VIeS Control Systems |
Description |
IS420PFFAH1B By General Electric 24VDC I/O Foundation Fieldbus Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty |
Technical Specifications | |
| Model Number | IS420PFFAH1B |
| Made By | GE Vernova |
| Product Series | Mark VIe and Mark VIeS Control Systems |
| Functional Description | Foundation Fieldbus Linking Device |
| Simplex Support | Yes |
| Hot Backup Support | Yes |
| Fieldbus H1 Ports | 4 |
| LAN Ports | 1 |
| Serial Connectors | 1 |
| Nominal Voltage | 24VDC |
| Voltage Range | 18-32VDC |
| Ambient Operating Temperature | 0° to 55°C |
| Product Manual | GEH-6721 |
Frequently Asked Questions | |
| What is the difference between the IS420PFFAH1B and an "H1A" model? The IS420PFFAH1B is the newer revision which made the "H1A" model obsolete. | |
| Is the IS420PFFAH1B backwards-compatible with the "H1A" model? Yes, though these two units can not be used to form a hot backup together. | |
| How many field devices are supported per H1 segment on the IS420PFFAH1B? These segments provide support for up to 16 field devices each. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS420PFFAH1B serves as a crucial link between the H1 and HSE components of a larger Foundation fieldbus network. This unit is capable of connecting up to 4 of these H1 links at a time, helping to condense the network into more manageable pieces. This device can also be used in a redundant setup to provide an additional layer of protection against unexpected failure. -Automation Industrial Quality Assurance Manager |
|
