- Product ID: IS420UCECH1B
- Unit Manufacturer: GE Vernova
- Family: Mark VIe and Mark VIeS Controllers
- Model Description: UCSC Controller + Expansion I/O
- Expansion I/O Ports: 7
- Processor: AMD GX-412HC
- Frequency: 1.2GHz
- Cores: 4 (2 Mark VIe)
- Ethernet Ports: 13
- Profinet Support: Yes
- Supported Features: EFA
- Weight: 2,060g
- Dimensions: 168mm x 150mm x 85mm
- Manual: GEH-6721
-
What type of ports make up the expansion I/O on the IS420UCECH1B?
- The expansion ports on this controller are all RJ-45 type ports.
-
Does the IS420UCECH1B have any status LEDs?
- Yes, the IS420UCECH1B has a wide range of different indicators on the front panel to help users quickly diagnose their system in case of a failure.
-
Is the IS420UCECH1B rated for use in hazardous locations?
- Yes, this module is certified for these type of environments.
⭐⭐⭐⭐⭐ 5.0
The IS420UCECH1B is an excellent upgrade over the base UCSCH1 controller design, as this model comes with an extra 7 I/O ports which can be vital in larger systems. Most importantly, this unit provides this added functionality without sacrificing any of the features from the base controller model. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS420UCECH1B Mark VIe & Mark VIeS Control Systems |
Description |

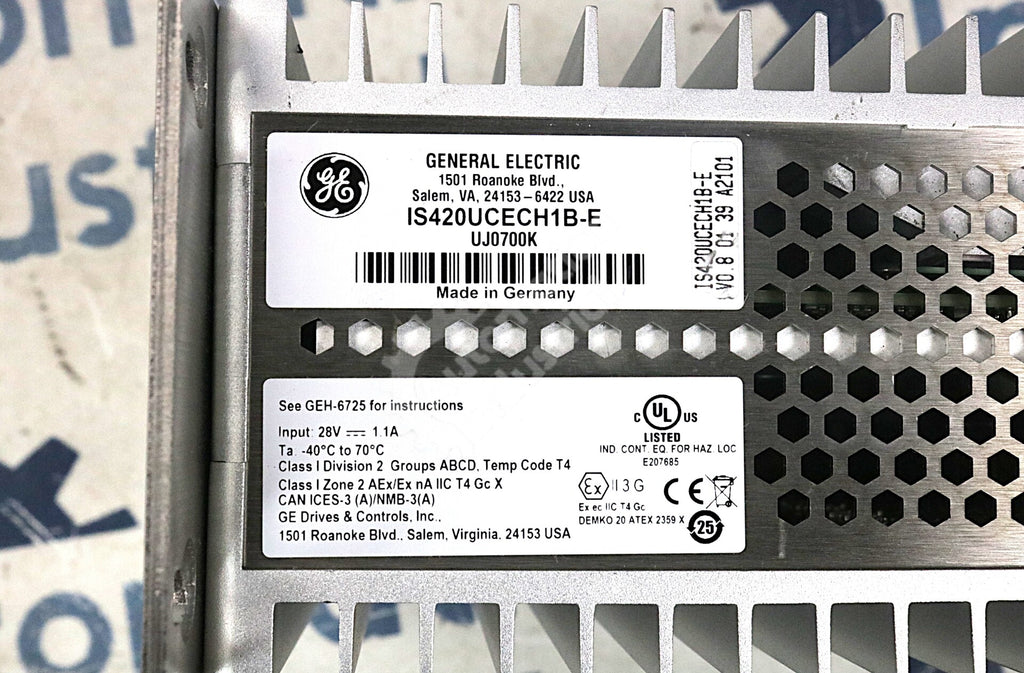

IS420UCECH1B By General Electric 28V 1.1Amp Port Expansion/Controller Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Product ID | IS420UCECH1B |
| Unit Manufacturer | GE Vernova |
| Family | Mark VIe and Mark VIeS Controllers |
| Model Description | UCSC Controller + Expansion I/O |
| Expansion I/O Ports | 7 |
| Processor | AMD GX-412HC |
| Frequency | 1.2GHz |
| Cores | 4 (2 Mark VIe) |
| Ethernet Ports | 13 |
| Profinet Support | Yes |
| Supported Features | EFA |
| Weight | 2,060g |
| Dimensions | 168mm x 150mm x 85mm |
| Manual | GEH-6721 |
Frequently Asked Questions | |
| What type of ports make up the expansion I/O on the IS420UCECH1B? The expansion ports on this controller are all RJ-45 type ports. | |
| Does the IS420UCECH1B have any status LEDs? Yes, the IS420UCECH1B has a wide range of different indicators on the front panel to help users quickly diagnose their system in case of a failure. | |
| Is the IS420UCECH1B rated for use in hazardous locations? Yes, this module is certified for these type of environments. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS420UCECH1B is an excellent upgrade over the base UCSCH1 controller design, as this model comes with an extra 7 I/O ports which can be vital in larger systems. Most importantly, this unit provides this added functionality without sacrificing any of the features from the base controller model. -Automation Industrial Quality Assurance Manager |
|
