- Catalog No: MA41-7070-502
- Manufacturer Name: Schneider Electric
- Model Series: SmartX Actuators
- Functional Description: Spring Return, Two-Position Actuator
- Control Type: SPST
- Voltage Rating: 120VAC
- Frequency: 50-60Hz
- Output Torque: 60lb-in (Minimum)
- Auxiliary Switches: Two
- Manual Override Support: Yes
- Compatible Shafts: Round, Square
- Gang-Mounting: Supported
-
Does the MA41-7070-502 support any accessories?
- Yes, a wide range of accessories, such as mounting brackets and weather shields, are available for this actuator.
-
How protective is the standard enclosure for the MA41-7070-502?
- Without any accessories, the MA41-7070-502 enclosure is rated for NEMA 2 and IP54 protection.
-
What is the maximum stall rating for the MA41-7070-502?
- The MA41-7070-502 has a maximum stall torque of 250lb-in, or 17Nm.
⭐⭐⭐⭐⭐ 5.0
The MA41-7070-502 is a good actuator for users that need multiple auxiliary switches for their system. Not only does this model support two of these switches, but it also has manual override support. If you need a mid-range AC powered actuator, this is one of the best options available. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
MA41-7070-502 |
Description |

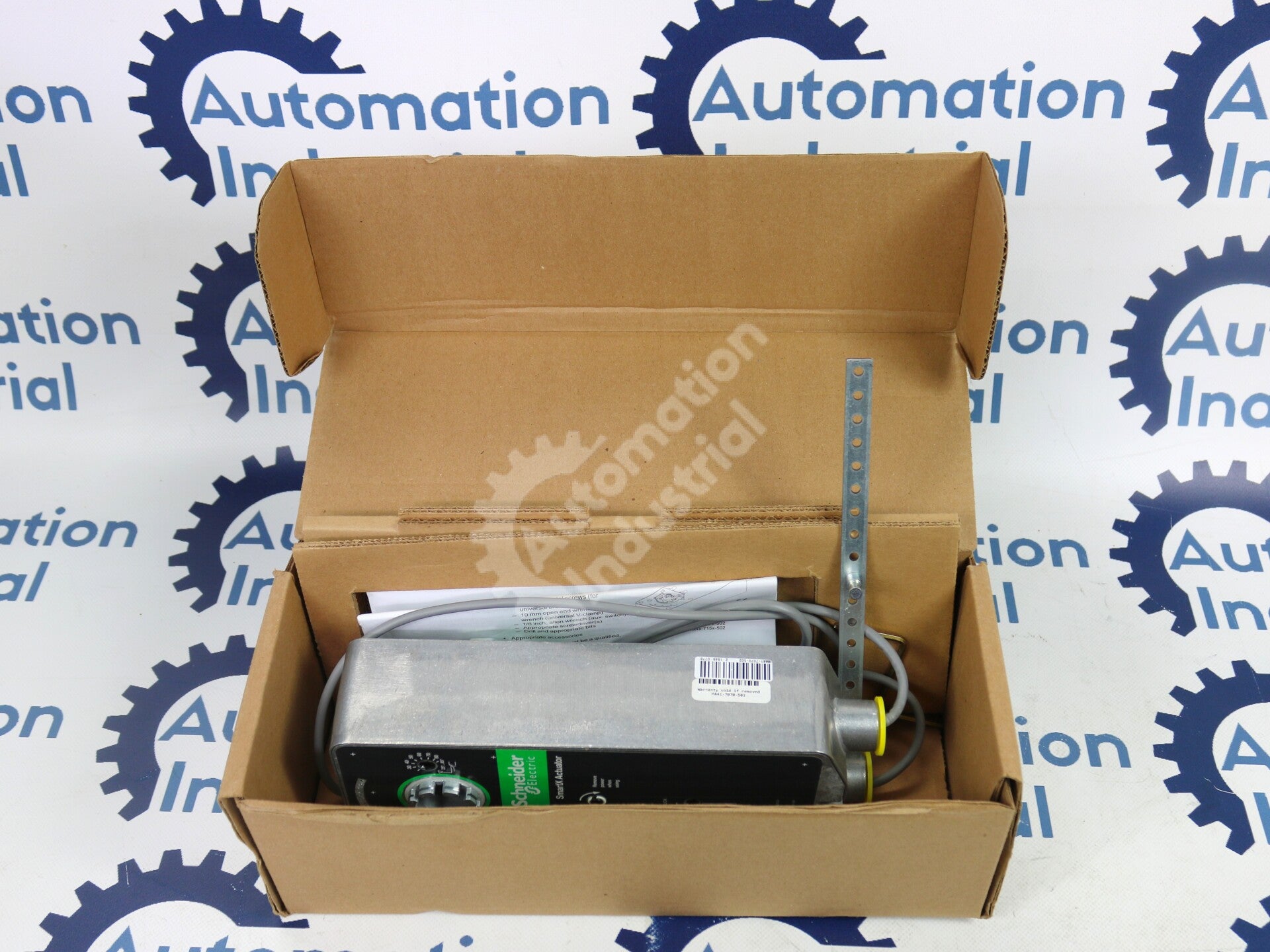

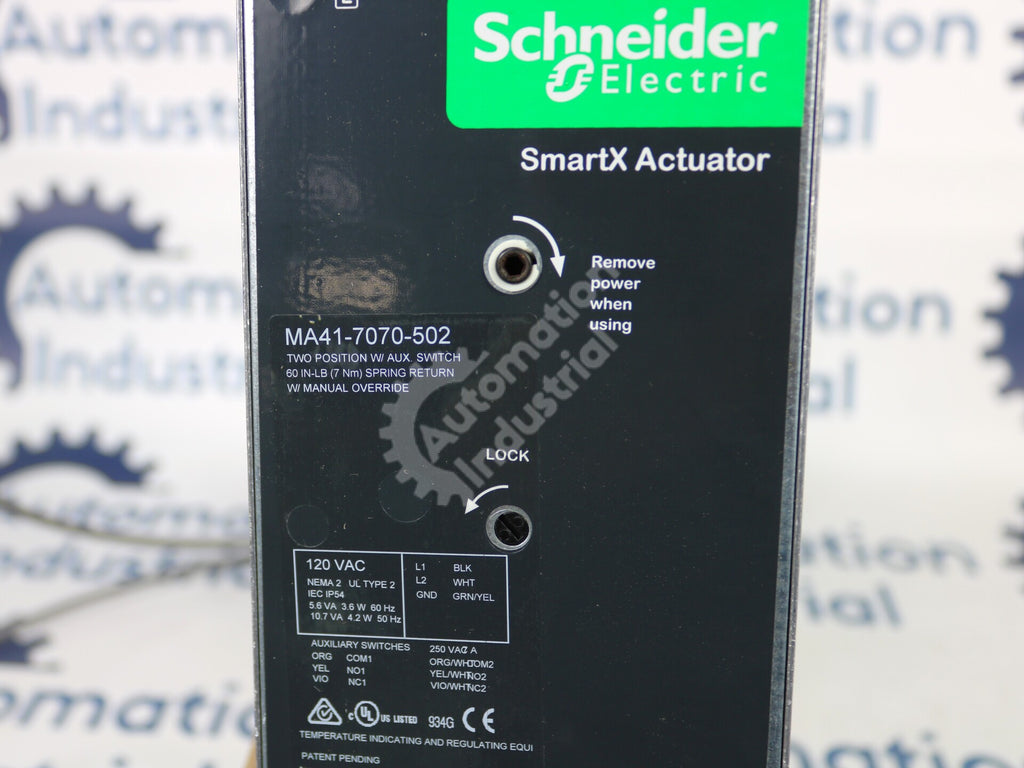

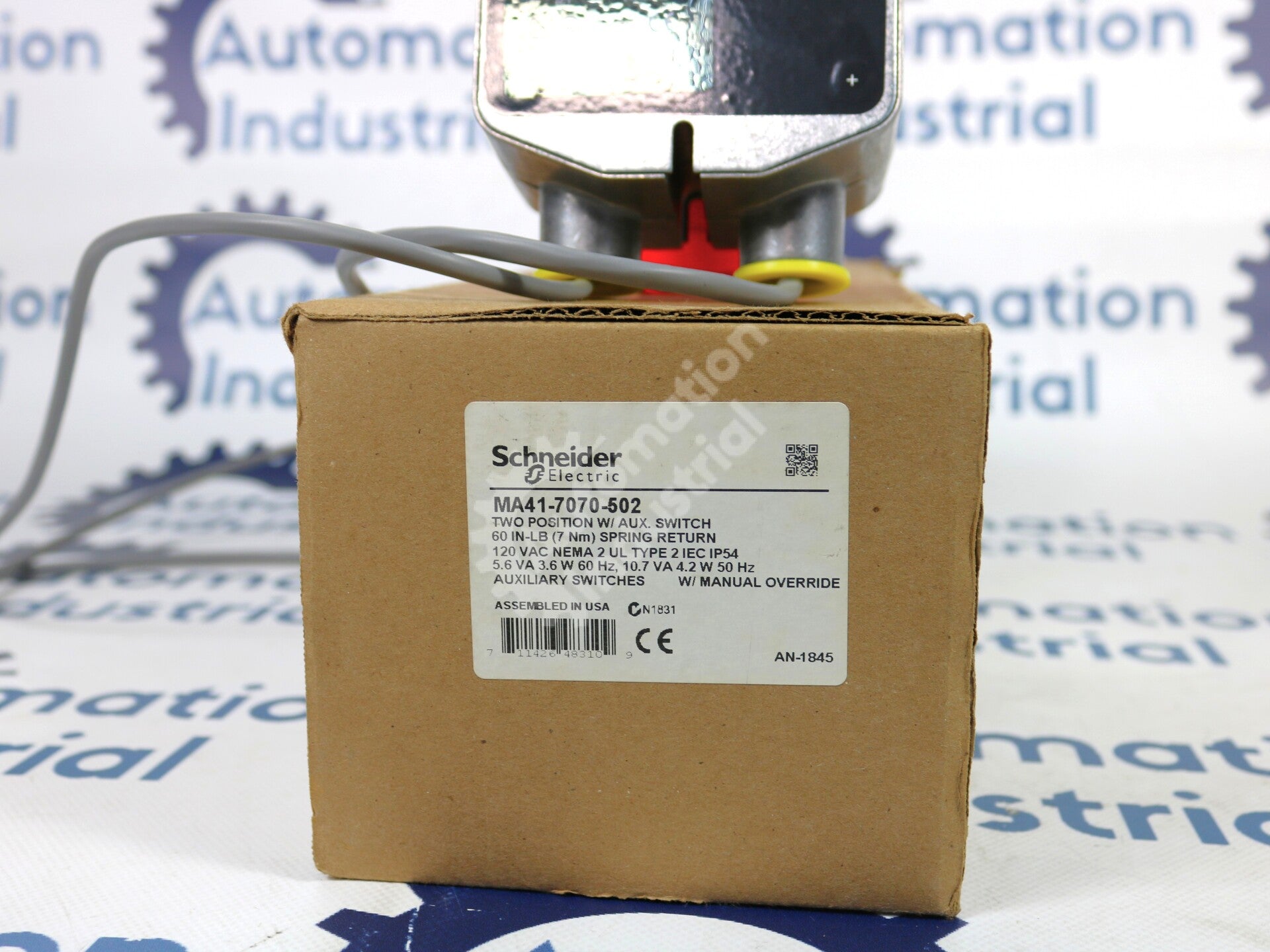

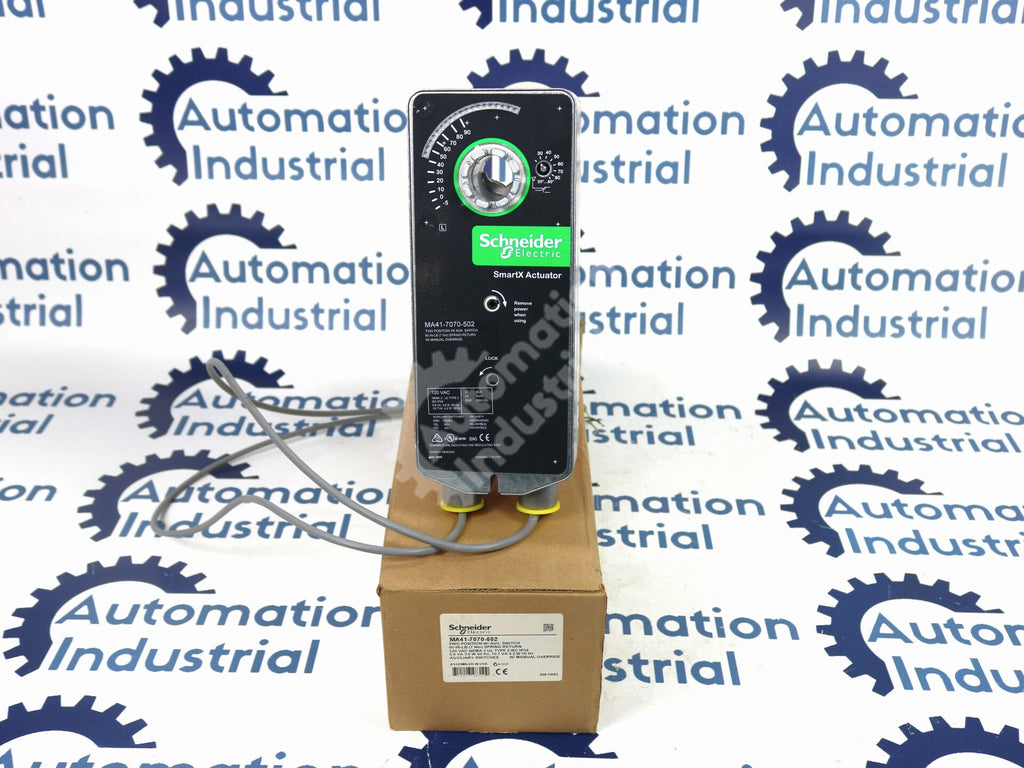

MA41-7070-502 By Schneider Electric 4nm Two-Position Aux. Switch Actuator NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Catalog No | MA41-7070-502 |
| Manufacturer Name | Schneider Electric |
| Model Series | SmartX Actuators |
| Functional Description | Spring Return, Two-Position Actuator |
| Control Type | SPST |
| Voltage Rating | 120VAC |
| Frequency | 50-60Hz |
| Output Torque | 60lb-in (Minimum) |
| Auxiliary Switches | Two |
| Manual Override Support | Yes |
| Compatible Shafts | Round, Square |
| Gang-Mounting | Supported |
Frequently Asked Questions | |
| Does the MA41-7070-502 support any accessories? Yes, a wide range of accessories, such as mounting brackets and weather shields, are available for this actuator. | |
| How protective is the standard enclosure for the MA41-7070-502? Without any accessories, the MA41-7070-502 enclosure is rated for NEMA 2 and IP54 protection. | |
| What is the maximum stall rating for the MA41-7070-502? The MA41-7070-502 has a maximum stall torque of 250lb-in, or 17Nm. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The MA41-7070-502 is a good actuator for users that need multiple auxiliary switches for their system. Not only does this model support two of these switches, but it also has manual override support. If you need a mid-range AC powered actuator, this is one of the best options available. -Automation Industrial Quality Assurance Manager |
|
