- Product Code: MS40-7043
- Brand Name: Schneider Electric
- Model Series: DuraDrive
- Part Designation: Direct Coupled Actuator
- Applications: Damper, Valve Control
- Voltage: 24VAC, 22-30VDC
- DC Amps: 0.15
- Minimum Output Torque: 35lb-in
- Maximum Stall Torque: 150lb-in
- Housing Type: Die-Case
- NEMA Rating: NEMA 2
- IP Rating: IP54
-
Where is the MS40-7043 supposed to mount?
- The MS40-7043 mounts directly to the damper shaft.
-
How does the MS40-7043 attach to the damper shaft?
- This is done via a universal V-clamp.
-
Is the MS40-7043 both 50Hz and 60Hz compatible?
- Yes, this actuator can operate under either AC frequency.
⭐⭐⭐⭐⭐ 5.0

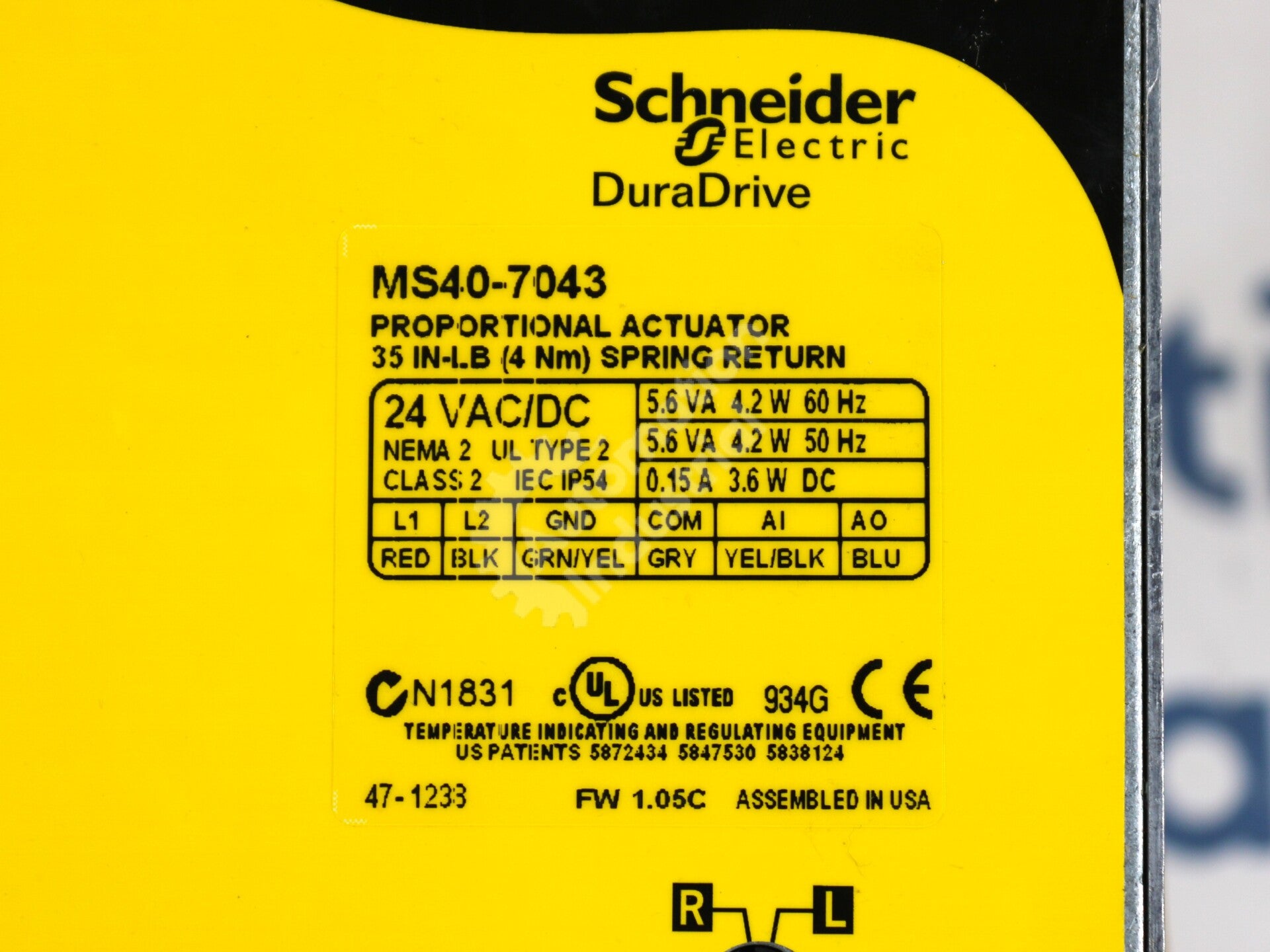

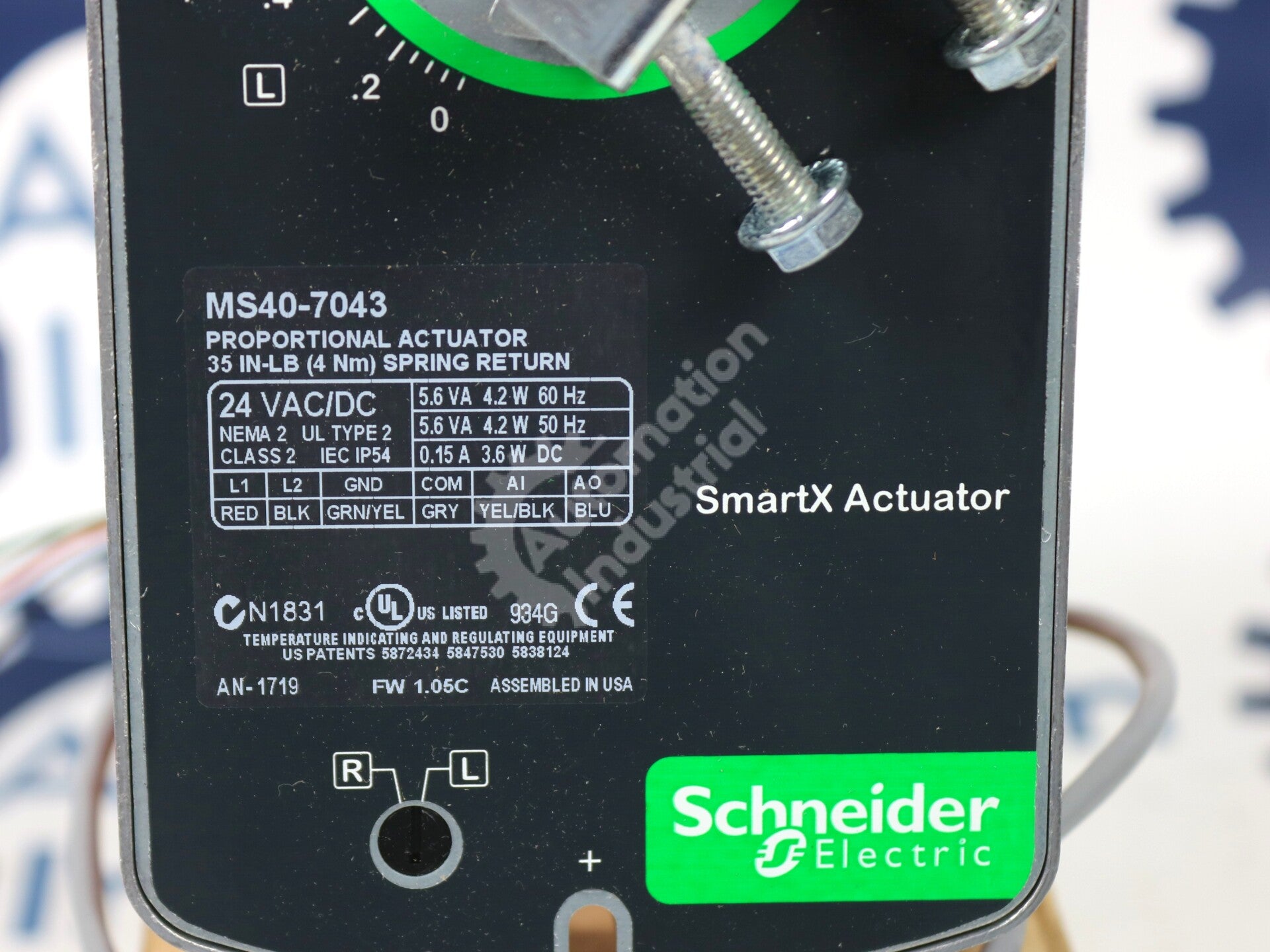

The MS40-7043 requires some manual wiring, but each wire is color coded and described on the label of the actuator itself. This makes identification much easier and the whole process a lot smoother during setup. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
MS40-7043 SmartX Actuators |
Description |
MS40-7043 By Schneider Electric 4Nm Spring Return Proportional Actuator NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Product Code | MS40-7043 |
| Brand Name | Schneider Electric |
| Model Series | DuraDrive |
| Part Designation | Direct Coupled Actuator |
| Applications | Damper, Valve Control |
| Voltage | 24VAC, 22-30VDC |
| DC Amps | 0.15 |
| Minimum Output Torque | 35lb-in |
| Maximum Stall Torque | 150lb-in |
| Housing Type | Die-Case |
| NEMA Rating | NEMA 2 |
| IP Rating | IP54 |
Frequently Asked Questions | |
| Where is the MS40-7043 supposed to mount? The MS40-7043 mounts directly to the damper shaft. | |
| How does the MS40-7043 attach to the damper shaft? This is done via a universal V-clamp. | |
| Is the MS40-7043 both 50Hz and 60Hz compatible? Yes, this actuator can operate under either AC frequency. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The MS40-7043 requires some manual wiring, but each wire is color coded and described on the label of the actuator itself. This makes identification much easier and the whole process a lot smoother during setup. -Automation Industrial Quality Assurance Manager |
|
