- Model Number: MS40-7173-0-0-1
- Equipment Manufacturer: Schneider Electric
- Series ID: DuraDrive
- Product Description: Spring Return Actuator
- Proportional: Yes
- AC Voltage: 24VAC (±20%)
- DC Voltage: 22-30VDC
- Output Torque: 150in-lb Minimum
- Control Signals: 2-10VDC
- Travel: 92°
- NEMA Rating: Type 4
- Country of Assembly: USA
-
What is the maximum stall torque for the MS40-7173-0-0-1?
- The MS40-7173-0-0-1 has a max stall rating of 545in-lbs, or 61.8N-m.
-
Can the MS40-7173-0-0-1 return both clockwise and counterclockwise?
- Yes, this is based on what position you mount the MS40-7173-0-0-1.
-
Can you double-mount the MS40-7173-0-0-1 with another actuator?
- Yes, this is supported for more demanding applications.
⭐⭐⭐⭐⭐ 5.0
The MS40-7173-0-0-1 is specifically made for use in low-voltage applications and is one of the only models with both AC and DC support. It uses the same ruggedized housing as the rest of the 717X models that allows it to be installed almost anywhere. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
MS40-7173-0-0-1 SmartX Actuators |
Description |

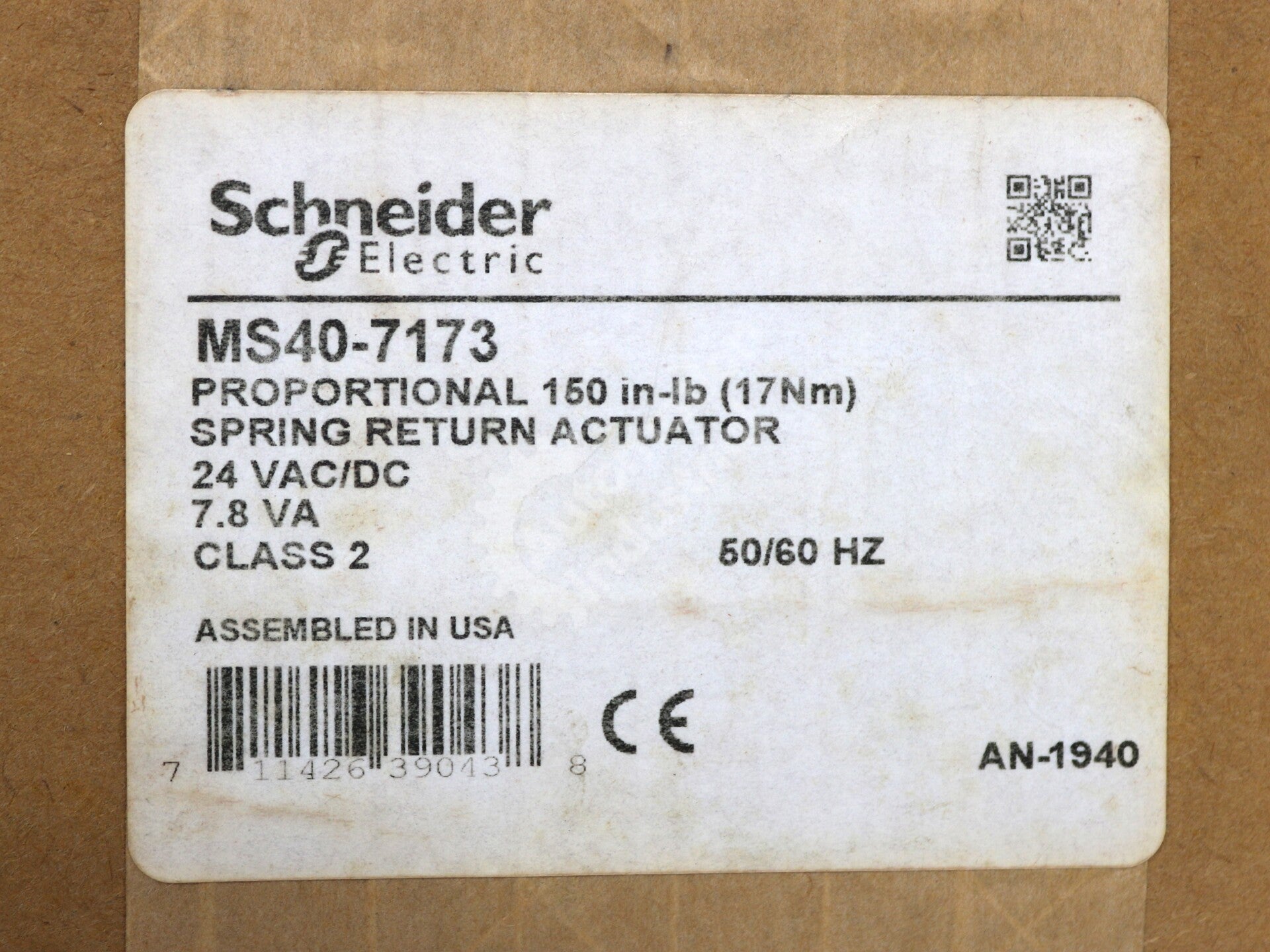

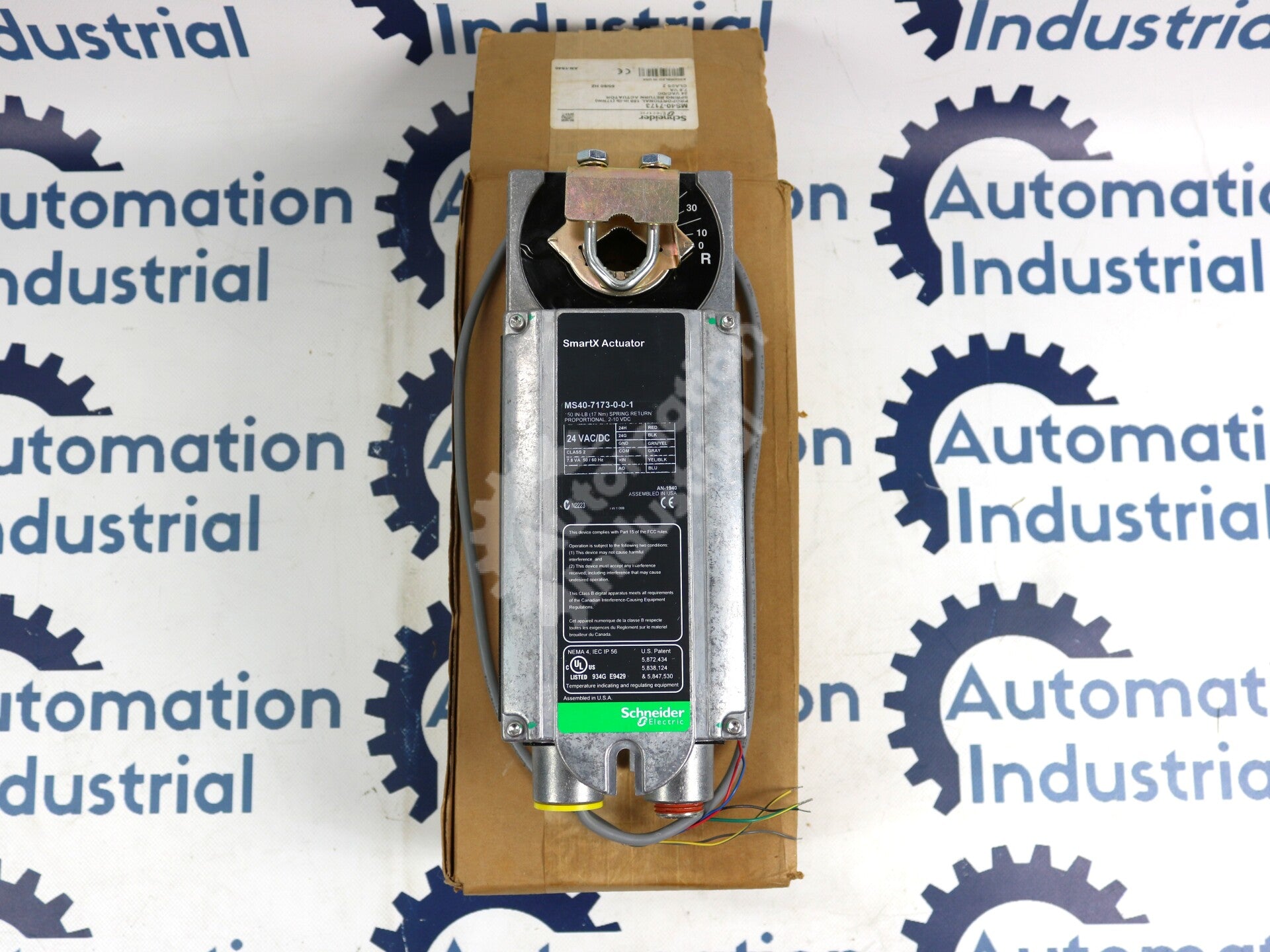

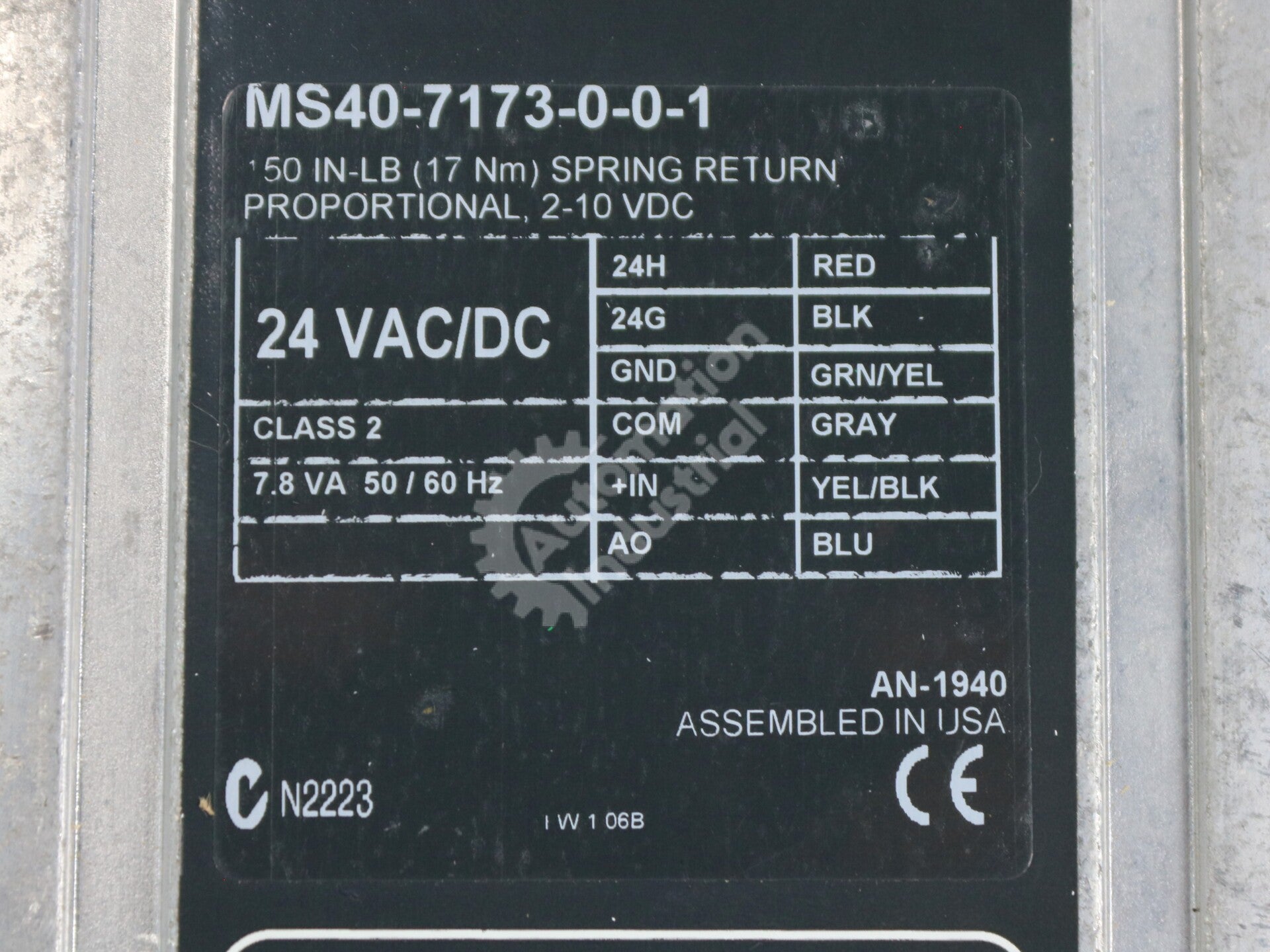

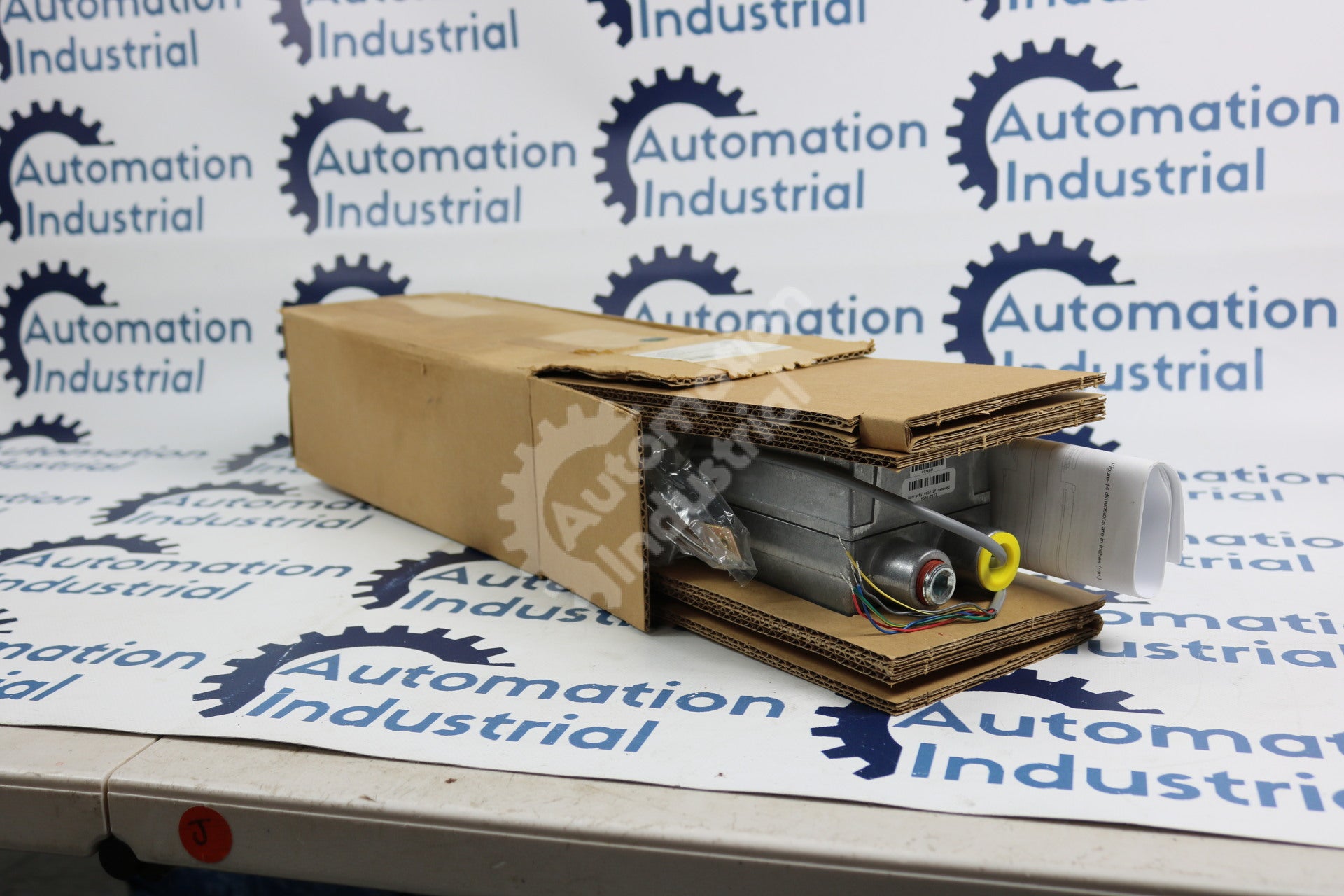

MS40-7173-0-0-1 By Schneider Electric 17Nm Spring Proportional Actuator NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Model Number | MS40-7173-0-0-1 |
| Equipment Manufacturer | Schneider Electric |
| Series ID | DuraDrive |
| Product Description | Spring Return Actuator |
| Proportional | Yes |
| AC Voltage | 24VAC (±20%) |
| DC Voltage | 22-30VDC |
| Output Torque | 150in-lb Minimum |
| Control Signals | 2-10VDC |
| Travel | 92° |
| NEMA Rating | Type 4 |
| Country of Assembly | USA |
Frequently Asked Questions | |
| What is the maximum stall torque for the MS40-7173-0-0-1? The MS40-7173-0-0-1 has a max stall rating of 545in-lbs, or 61.8N-m. | |
| Can the MS40-7173-0-0-1 return both clockwise and counterclockwise? Yes, this is based on what position you mount the MS40-7173-0-0-1. | |
| Can you double-mount the MS40-7173-0-0-1 with another actuator? Yes, this is supported for more demanding applications. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The MS40-7173-0-0-1 is specifically made for use in low-voltage applications and is one of the only models with both AC and DC support. It uses the same ruggedized housing as the rest of the 717X models that allows it to be installed almost anywhere. -Automation Industrial Quality Assurance Manager |
|
