- Model Number: MS40-7173
- Manufacturer: Schneider Electric
- Product Line: DuraDrive
- Unit Type: Spring Return Proportional Actuator
- Torque Rating: 150lb-in
- Stall: 545lb-in
- Voltage Rating: 24VAC/DC
- AC Tolerance: ±20%
- DC Range: 22-30VDC
- Control Signal: 2-10VDC
- Impedance: 121kΩ
- Operating Temperature: -32° to 60°C
-
What is the travel range of the MS40-7173?
- The MS40-7173 has 92° of travel.
-
Does the MS40-7173 support position indication?
- Yes, this model has a position indication scale built-in.
-
How many clamps are needed to mount the MS40-7173?
- The MS40-7173 requires two clamps for mounting.
⭐⭐⭐⭐⭐ 5.0
The MS40-7173 is one of the most flexible actuators in the DuraDrive series. The spring return can be configured in either direction, the supported control signal type can be changed by adding a resistor, and multiple of these actuators can even be added together in a gang-mount setup for added torque. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
MS40-7173 SmartX Actuators |
Description |

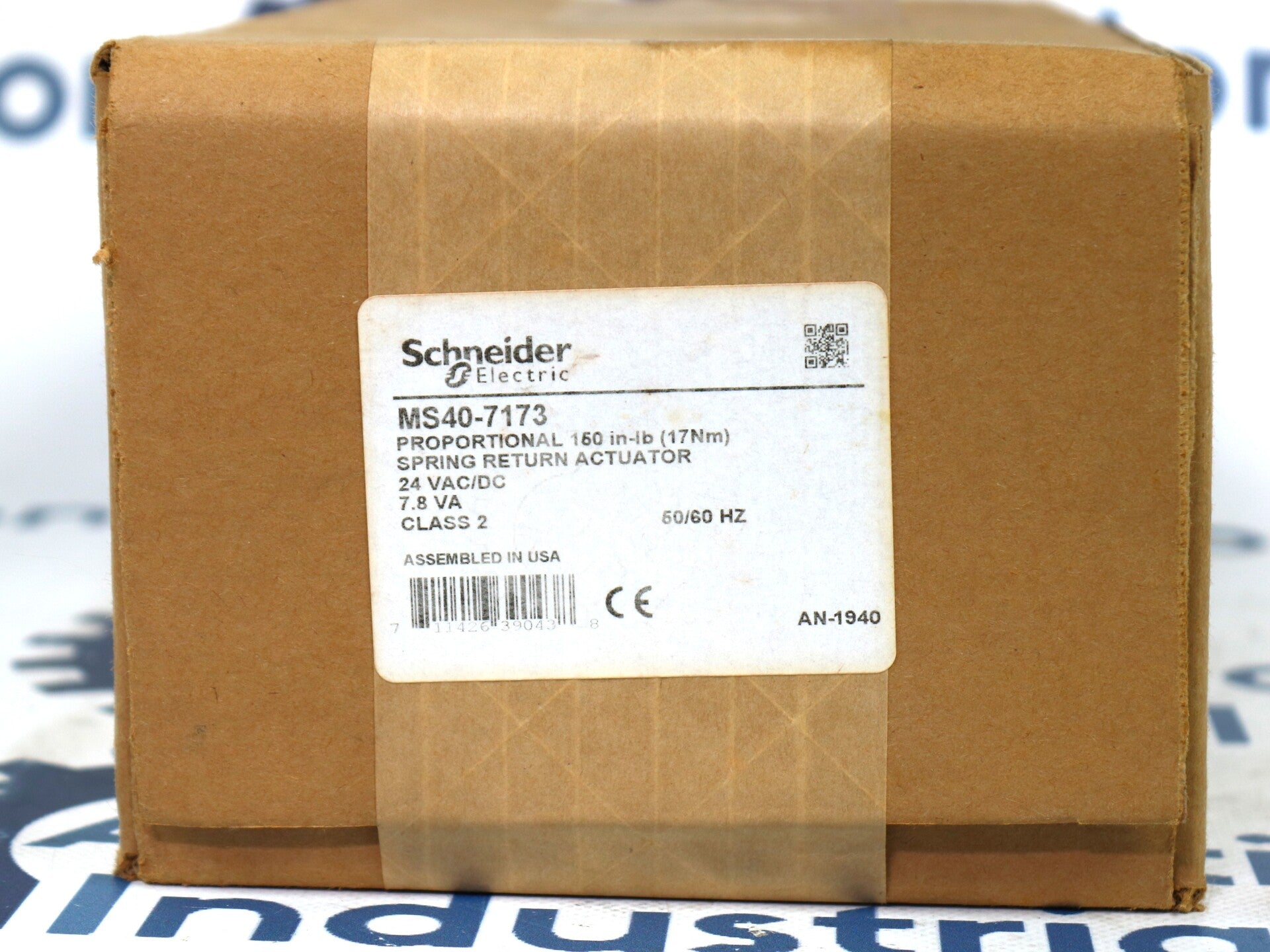

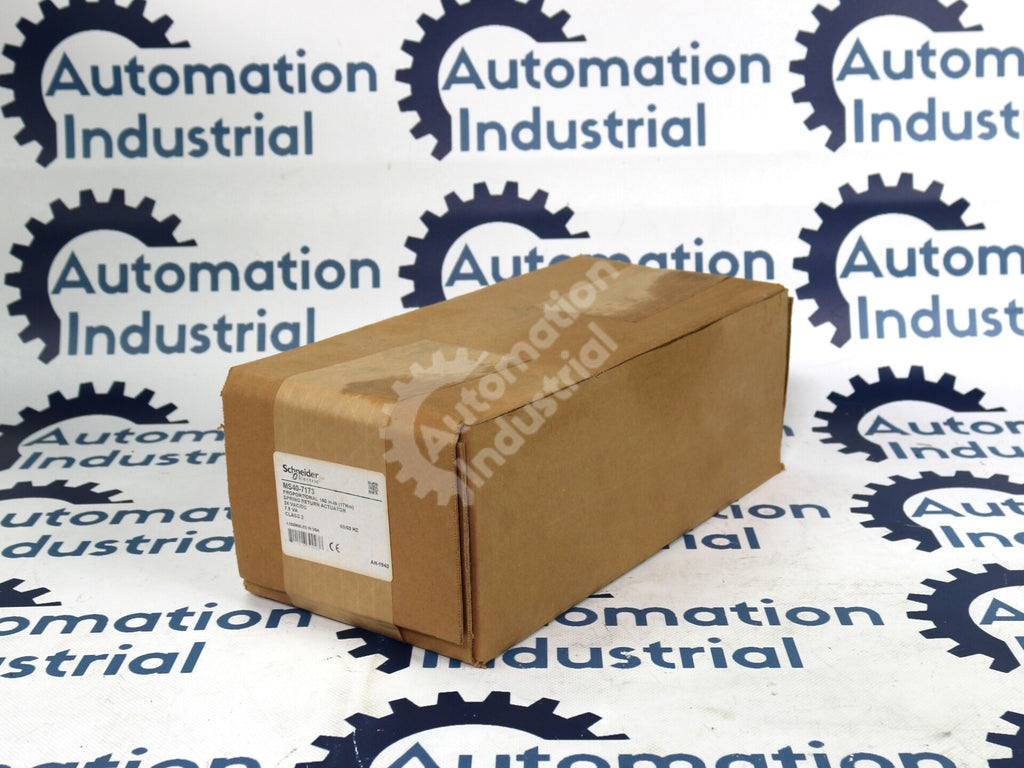

MS40-7173 By Schneider Electric 17Nm Proportional Actuator New Sealed |
Condition |
New Sealed With 1 Year Warranty. |
Technical Specifications | |
| Model Number | MS40-7173 |
| Manufacturer | Schneider Electric |
| Product Line | DuraDrive |
| Unit Type | Spring Return Proportional Actuator |
| Torque Rating | 150lb-in |
| Stall | 545lb-in |
| Voltage Rating | 24VAC/DC |
| AC Tolerance | ±20% |
| DC Range | 22-30VDC |
| Control Signal | 2-10VDC |
| Impedance | 121kΩ |
| Operating Temperature | -32° to 60°C |
Frequently Asked Questions | |
| What is the travel range of the MS40-7173? The MS40-7173 has 92° of travel. | |
| Does the MS40-7173 support position indication? Yes, this model has a position indication scale built-in. | |
| How many clamps are needed to mount the MS40-7173? The MS40-7173 requires two clamps for mounting. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The MS40-7173 is one of the most flexible actuators in the DuraDrive series. The spring return can be configured in either direction, the supported control signal type can be changed by adding a resistor, and multiple of these actuators can even be added together in a gang-mount setup for added torque. -Automation Industrial Quality Assurance Manager |
|
