We have this item physically in stock on our shelf. Buy with confidence!
We have this item physically in stock on our shelf. Buy with confidence!
Contact Information: 1-800-991-7026 | 1-919-372-8413 | sales@automationindustrial.com
FREE DOMESTIC GROUND SHIPPING! (see shipping policies below for more details)
ALL ORDERS SHIP SAME DAY! (if placed before 3PM EST)
- M/N: P41000D1
- Manufacturer Name: Knick
- Family ID: P41000
- Role: High Voltage Transducer
- Accepted Input Voltage Type: Unipolar, Bipolar
- Input Range: ±60mV, ±90mV, ±150mV, ±300mV, ±500mV, ±10V
- Calibrated Switching: Yes
- Output Range: ±mA, ±10V, Bipolar, 4-20mA
- Offset: Up to ±150%
- Power Supply: 22-230VAC
- Made In: Germany
- IP Rating: IP40
-
What is the factory setting for the I/O on the P41000D1?
- These are factory set to ±10V.
-
What temperature range can the P41000D1 be operated within?
- The P41000D1 can safely be operated all the way from -10°C to 70°C.
-
What is the MTBF for the P41000D1?
- The P41000D1 has a mean time of approximately 96 years between failures.
⭐⭐⭐⭐⭐ 5.0

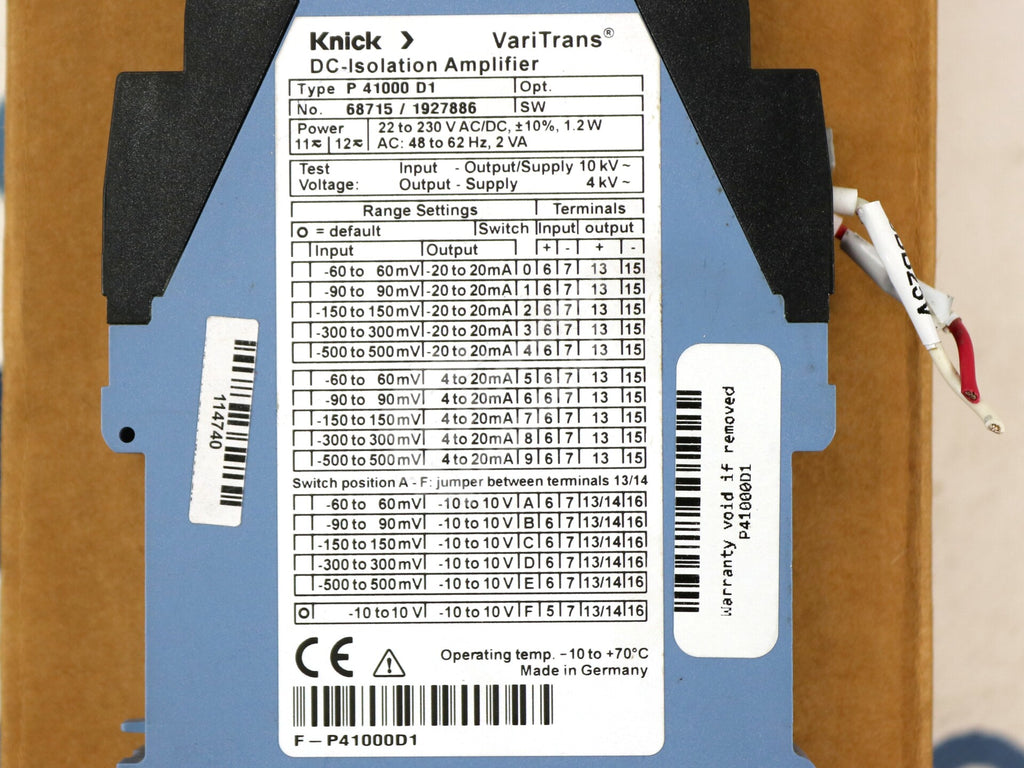

For a relatively complex transducer, the P41000D1 manages to make operation as streamlined as possible through the extensive I/O chart on the side of the module. As for its durability, the P41000D1 can operate in most industrial conditions for many years without issue. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
P41000D1 |
Description |
P41000D1 By Knick Direct Current Isolation Amplifier Safety Relay |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| M/N | P41000D1 |
| Manufacturer Name | Knick |
| Family ID | P41000 |
| Role | High Voltage Transducer |
| Accepted Input Voltage Type | Unipolar, Bipolar |
| Input Range | ±60mV, ±90mV, ±150mV, ±300mV, ±500mV, ±10V |
| Calibrated Switching | Yes |
| Output Range | ±mA, ±10V, Bipolar, 4-20mA |
| Offset | Up to ±150% |
| Power Supply | 22-230VAC |
| Made In | Germany |
| IP Rating | IP40 |
Frequently Asked Questions | |
| What is the factory setting for the I/O on the P41000D1? These are factory set to ±10V. | |
| What temperature range can the P41000D1 be operated within? The P41000D1 can safely be operated all the way from -10°C to 70°C. | |
| What is the MTBF for the P41000D1? The P41000D1 has a mean time of approximately 96 years between failures. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
For a relatively complex transducer, the P41000D1 manages to make operation as streamlined as possible through the extensive I/O chart on the side of the module. As for its durability, the P41000D1 can operate in most industrial conditions for many years without issue. -Automation Industrial Quality Assurance Manager |
|
