- Unit Number: PM1-5E1-XD3
- Equipment Manufacturer: Parker CTC
- Model Line: P1 Powerstations
- Designation: Monitor
- Bezel: Standard
- Size: 15"
- Dimensions: 13.3" x 16.8" x 3.5"
- Color Depth: ≤16.7 Million
- Brightness: 250 NITS
- Bulb Life: 50,000hrs
- Input Power: 24VDC, 2A
- Manual Code: A3-06717-02
-
What is the viewing angle like for the PM1-5E1-XD3?
- The PM1-5E1-XD3 can be viewed at up to 80° in all directions apart from downward, which is only 60°.
-
What resolution is the display on the PM1-5E1-XD3?
- The PM1-5E1-XD3 has an XGA resolution.
-

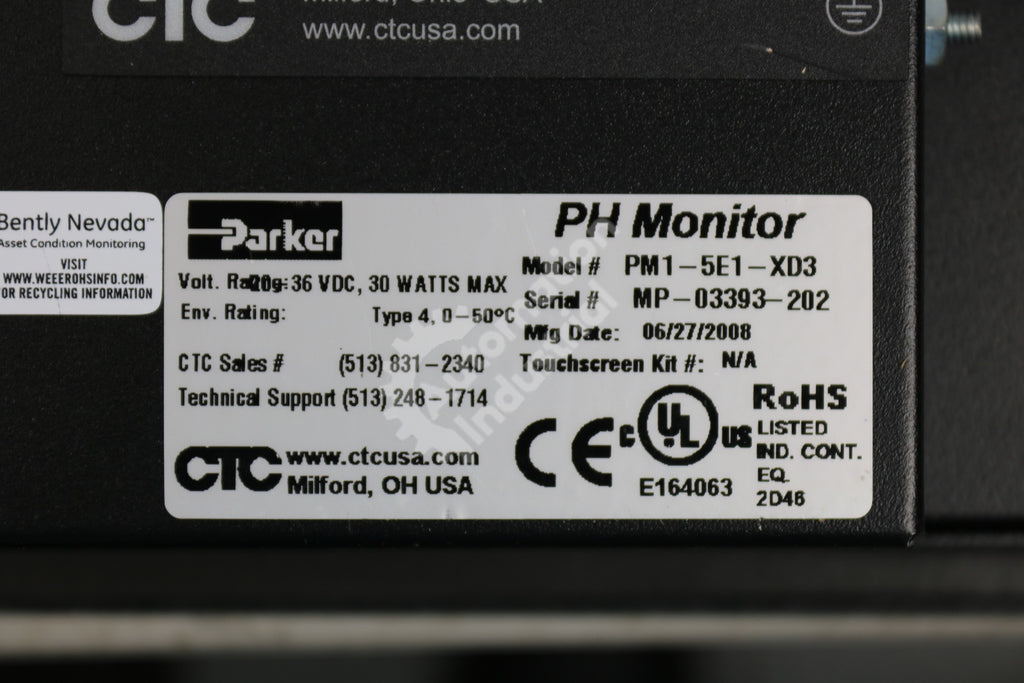

What is meant by the Type 4 rating on the PM1-5E1-XD3 label?
- This monitor is rated at a NEMA 4 level when installed in a NEMA 4 enclosure.
⭐⭐⭐⭐⭐ 5.0
The PM1-5E1-XD3 has a good resolution, excellent color depth, and long-lasting backlight. All the main characteristics of this monitor are high-end relative to most similar industrial displays. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
PM1-5E1-XD3 P1 Powerstation RS Monitors |
Description |
PM1-5E1-XD3 By CTC Parker Automation 15 Inch P1 Powerstation Monitor |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit Number | PM1-5E1-XD3 |
| Equipment Manufacturer | Parker CTC |
| Model Line | P1 Powerstations |
| Designation | Monitor |
| Bezel | Standard |
| Size | 15" |
| Dimensions | 13.3" x 16.8" x 3.5" |
| Color Depth | ≤16.7 Million |
| Brightness | 250 NITS |
| Bulb Life | 50,000hrs |
| Input Power | 24VDC, 2A |
| Manual Code | A3-06717-02 |
Frequently Asked Questions | |
| What is the viewing angle like for the PM1-5E1-XD3? The PM1-5E1-XD3 can be viewed at up to 80° in all directions apart from downward, which is only 60°. | |
| What resolution is the display on the PM1-5E1-XD3? The PM1-5E1-XD3 has an XGA resolution. | |
| What is meant by the Type 4 rating on the PM1-5E1-XD3 label? This monitor is rated at a NEMA 4 level when installed in a NEMA 4 enclosure. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The PM1-5E1-XD3 has a good resolution, excellent color depth, and long-lasting backlight. All the main characteristics of this monitor are high-end relative to most similar industrial displays. -Automation Industrial Quality Assurance Manager |
|
