- Part Number: GP570-TC31-24V
- QuickPanel P/N: QPI2D100C2P
- Manufactured By: Digital Electronics Corporation
- Unit Family: Pro-face GP-470/570
- Product Type: Graphic Control Panel
- Display Version: Color TFT LCD
- Resolution (Pixels): 640 x 480
- Display Area: 211mm by 158mm
- Humidity: 30% to 85% Non-condensing
- Operating Temperature Range: 0° to 40°C
- Storage Temperature Range: -10° to 60°C
- Instruction Manual: GP-470/570 Series User's Manual
-
What character sizes are supported on the GP570-TC31-24V?
- For standard characters, these can be expanded 1, 2, 4, or 8 times.
-
What kind of touch panel does the GP570-TC31-24V have?
- The GP570-TC31-24V touch panel has 32 by 24 keys per screen and supports both 1 and 2-point touch.
-
What resolution does the GP570-TC31-24V support?
- The GP570-TC31-24V supports a 640 by 480 pixel resolution in its display.
⭐⭐⭐⭐⭐ 5.0
The GP570-TC31-24V uses one of the most popular type displays in the GP-470/570 series. Because of this, you can easily find replacements if you are looking to use this model long-term and the display eventually fails. The replacement process is also not too difficult relative to other HMI designs. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
GP570-TC31-24V GP-470/570 Series |
Description |

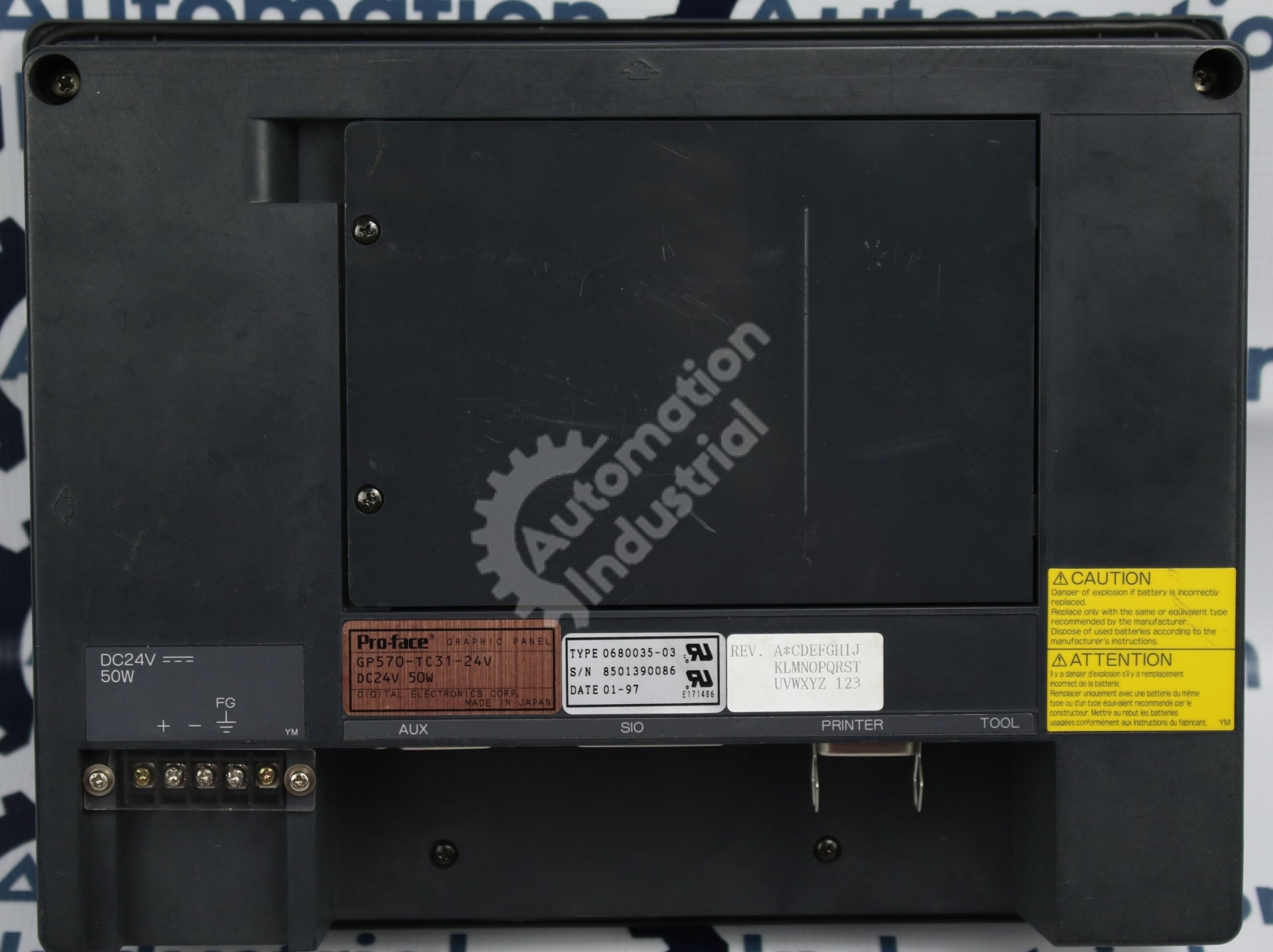

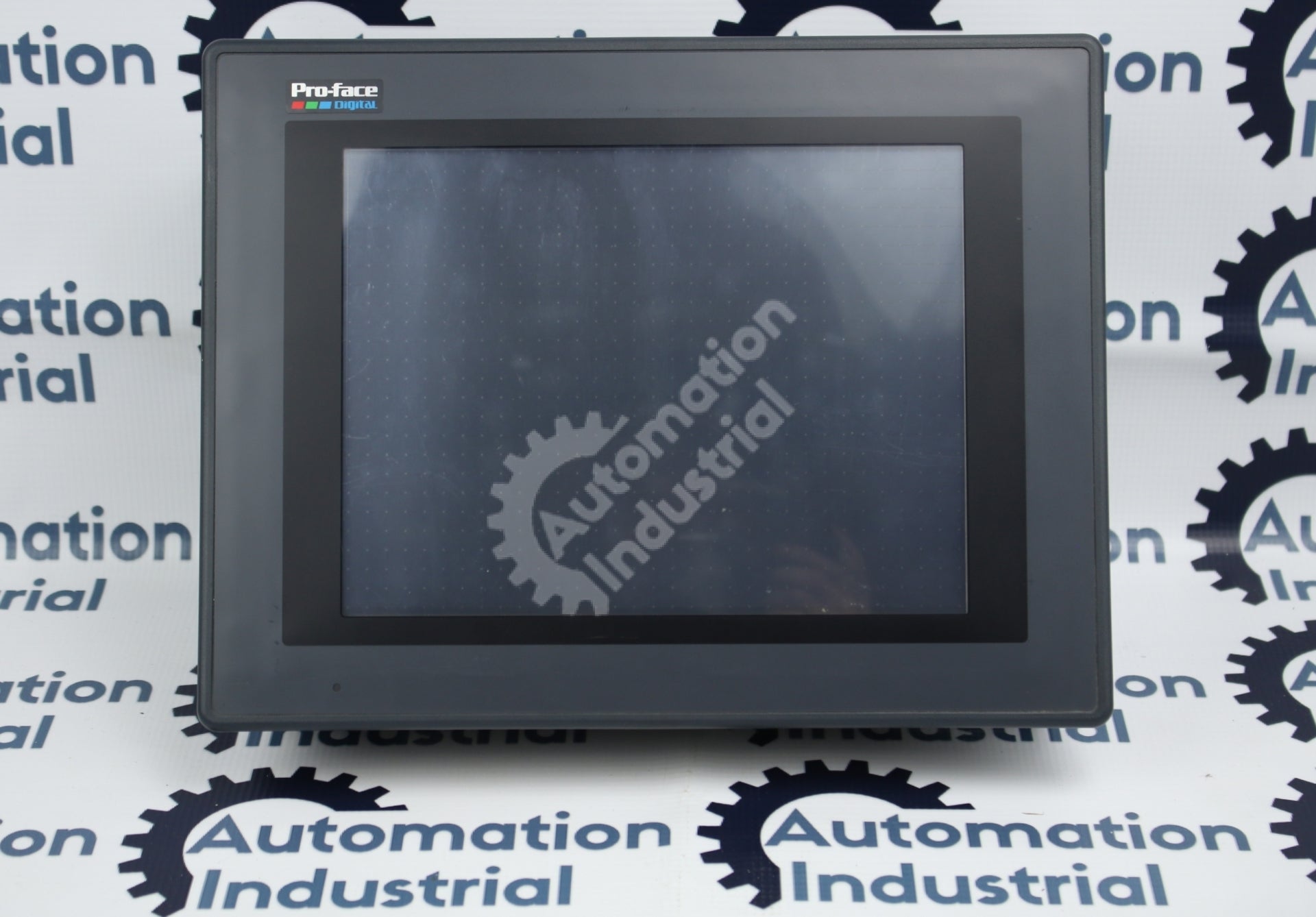

Pro-face GP570-TC31-24V 10.4 inch Touchscreen HMI |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | GP570-TC31-24V |
| QuickPanel P/N | QPI2D100C2P |
| Manufactured By | Digital Electronics Corporation |
| Unit Family | Pro-face GP-470/570 |
| Product Type | Graphic Control Panel |
| Display Version | Color TFT LCD |
| Resolution (Pixels) | 640 x 480 |
| Display Area | 211mm by 158mm |
| Humidity | 30% to 85% Non-condensing |
| Operating Temperature Range | 0° to 40°C |
| Storage Temperature Range | -10° to 60°C |
| Instruction Manual | GP-470/570 Series User's Manual |
Frequently Asked Questions | |
| What character sizes are supported on the GP570-TC31-24V? For standard characters, these can be expanded 1, 2, 4, or 8 times. | |
| What kind of touch panel does the GP570-TC31-24V have? The GP570-TC31-24V touch panel has 32 by 24 keys per screen and supports both 1 and 2-point touch. | |
| What resolution does the GP570-TC31-24V support? The GP570-TC31-24V supports a 640 by 480 pixel resolution in its display. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The GP570-TC31-24V uses one of the most popular type displays in the GP-470/570 series. Because of this, you can easily find replacements if you are looking to use this model long-term and the display eventually fails. The replacement process is also not too difficult relative to other HMI designs. -Automation Industrial Quality Assurance Manager |
|
