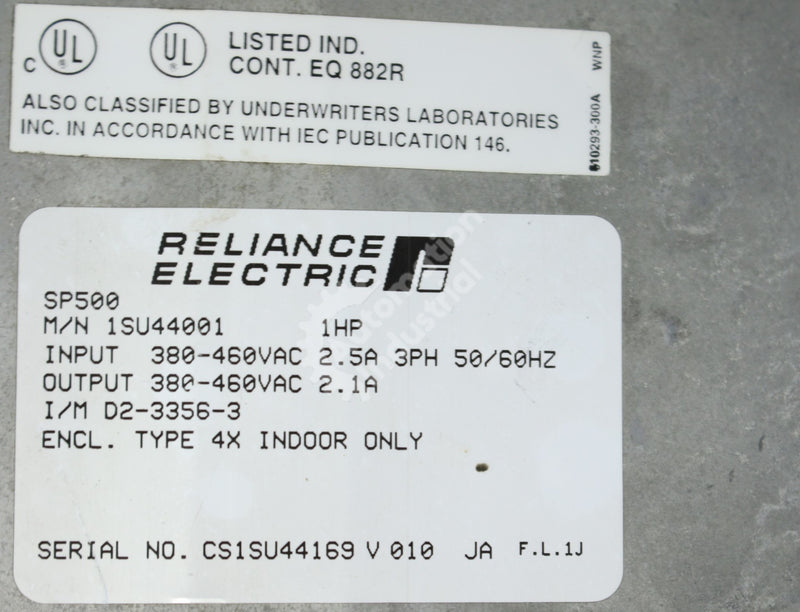

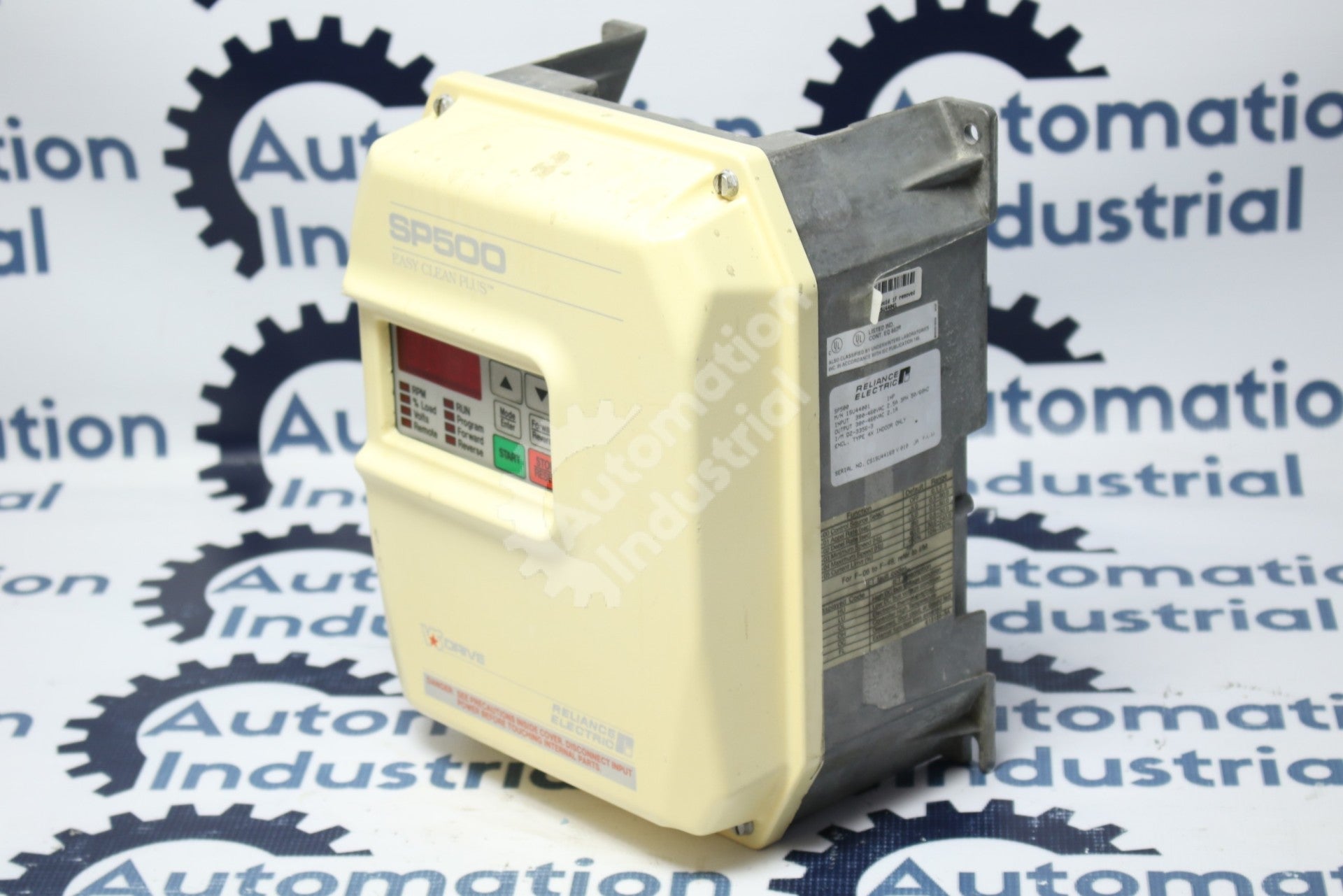

- Model Name: 1SU44001
- Produced By: Reliance Electric
- Series ID: SP500
- Product Type: AC Drive
- Drive Type: NEMA
- Enclosure Rating: NEMA 4X/12
- Horsepower: 1
- Input Voltage Rating: 380-460VAC
- Variance: +/-10%
- Frequency: 50/60Hz
- Input Current: 2.5A
- Product Manual: D2-3356-3
-
What are the dimensions of the 1SU44001?
- The 1SU44001 is approximately 222.3mm wide, 301.7mm high, and 160.1mm deep.
-
Where can I buy the 1SU44001?
- The 1SU44001 is available for purchase directly through our site here at Automation Industrial.
-
What kind of certifications was the 1SU44001 made to conform to?
- The 1SU44001 was made with IEC and UL certifications in mind.
⭐⭐⭐⭐⭐ 5.0
The 1SU44001 is primarily designed for industrial operators who have high levels of dust or moisture around their system but only need basic drive functionality. This model is optimized for the best cost-efficiency in these exact situations. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
1SU44001 SP500 |
Description |
Reliance Electric 1SU44001 SP500 0.25-1.0 HP 3Phase AC Drive |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model Name | 1SU44001 |
| Produced By | Reliance Electric |
| Series ID | SP500 |
| Product Type | AC Drive |
| Drive Type | NEMA |
| Enclosure Rating | NEMA 4X/12 |
| Horsepower | 1 |
| Input Voltage Rating | 380-460VAC |
| Variance | +/-10% |
| Frequency | 50/60Hz |
| Input Current | 2.5A |
| Product Manual | D2-3356-3 |
Frequently Asked Questions | |
| What are the dimensions of the 1SU44001? The 1SU44001 is approximately 222.3mm wide, 301.7mm high, and 160.1mm deep. | |
| Where can I buy the 1SU44001? The 1SU44001 is available for purchase directly through our site here at Automation Industrial. | |
| What kind of certifications was the 1SU44001 made to conform to? The 1SU44001 was made with IEC and UL certifications in mind. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 1SU44001 is primarily designed for industrial operators who have high levels of dust or moisture around their system but only need basic drive functionality. This model is optimized for the best cost-efficiency in these exact situations. -Automation Industrial Quality Assurance Manager |
|
