- Product ID: SY2-24
- Part Manufacturer: Belimo
- Model Range: SY
- Unit Type: Actuator
- Application Type: Butterfly Valve
- Voltage: 24VAC/DC
- Torque: 800in-lb
- Actuator Draw: 3.0A
- IP Rating: IP67
- NEMA Rating: NEMA 4
- CSA Approved: Yes
- CE Marked: Yes
-
What transformer size is required for the SY2-24?
- The SY2-24 needs a 90VA transformer.
-
What duty cycle is the SY2-24 rated for?
- The SY2-24 is rated for 30% duty cycle.
-
What material is the housing for the SY2-24 made from?
- This housing is made of pressure casted aluminum.
⭐⭐⭐⭐⭐ 5.0
The SY2-24 is capable of providing a significant amount of torque for your butterfly valve and is designed to be as maintenance-free as possible. This is one of the most straightforward actuator designs and is overall an incredibly reliable part. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
SY2-24 |
Description |

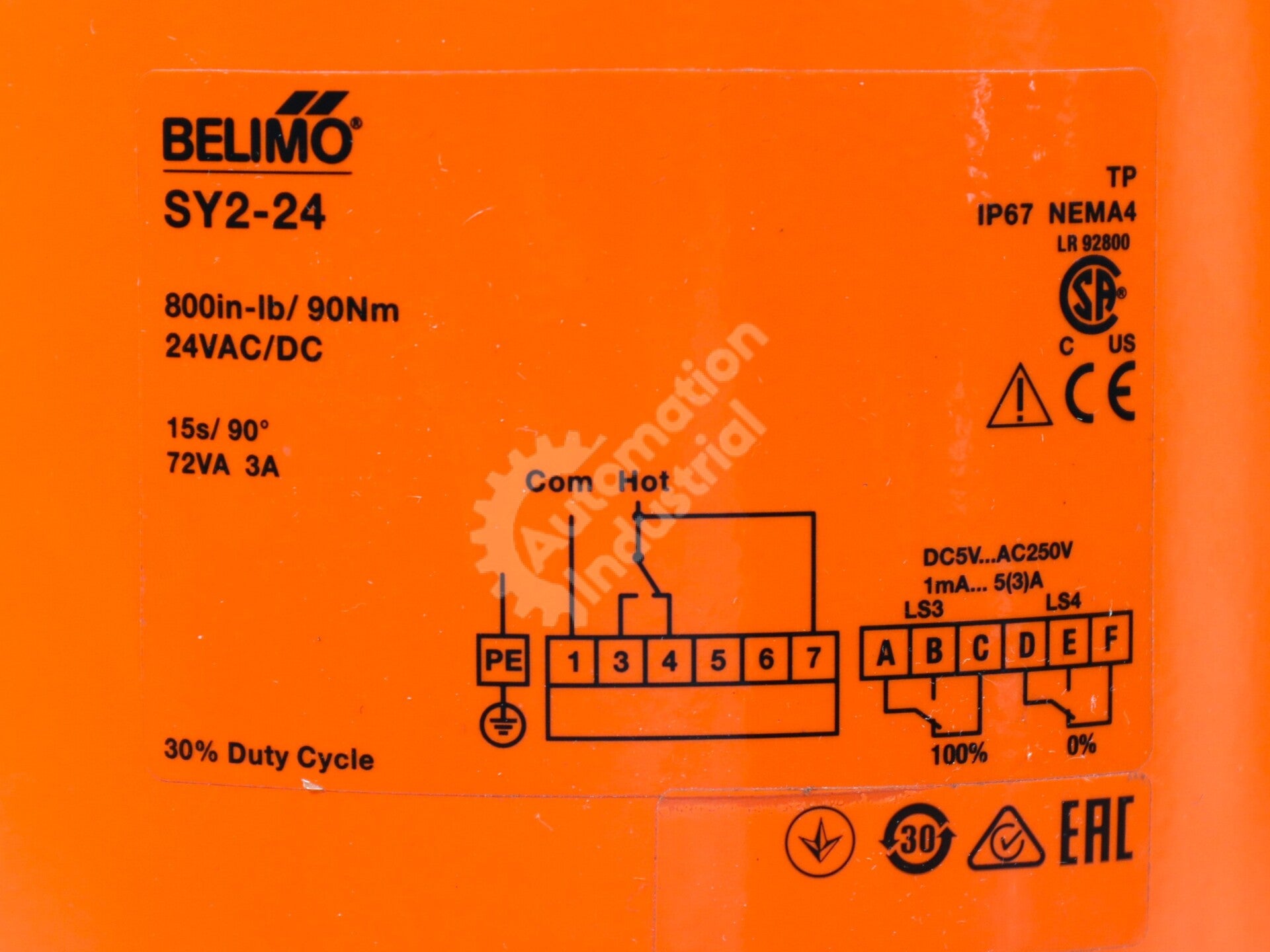

SY2-24 By Belimo 90Nm Rotary Actuator for Butterfly Valve |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Product ID | SY2-24 |
| Part Manufacturer | Belimo |
| Model Range | SY |
| Unit Type | Actuator |
| Application Type | Butterfly Valve |
| Voltage | 24VAC/DC |
| Torque | 800in-lb |
| Actuator Draw | 3.0A |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4 |
| CSA Approved | Yes |
| CE Marked | Yes |
Frequently Asked Questions | |
| What transformer size is required for the SY2-24? The SY2-24 needs a 90VA transformer. | |
| What duty cycle is the SY2-24 rated for? The SY2-24 is rated for 30% duty cycle. | |
| What material is the housing for the SY2-24 made from? This housing is made of pressure casted aluminum. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The SY2-24 is capable of providing a significant amount of torque for your butterfly valve and is designed to be as maintenance-free as possible. This is one of the most straightforward actuator designs and is overall an incredibly reliable part. -Automation Industrial Quality Assurance Manager |
|
