- Unit Number: TC-5242
- OEM: Schneider Electric
- Product Family: TC-52XX
- Model Designation: Temperature Control
- Functionality: Low Limit Thermostat
- Poles: 1
- Temperature Range: 15° to 55°F
- Electrical Contacts: 2x1 Pole Circuit
- Differential Type: Lockout
- Max Overrun Temperature: 400°F
- Finish: Enamel
- Weight: 2.5lbs
-
How thick is the case of the TC-5242?
- The case is 0.062" thick, and the cover is 0.028" thick.
-
How do you adjust the TC-5242?

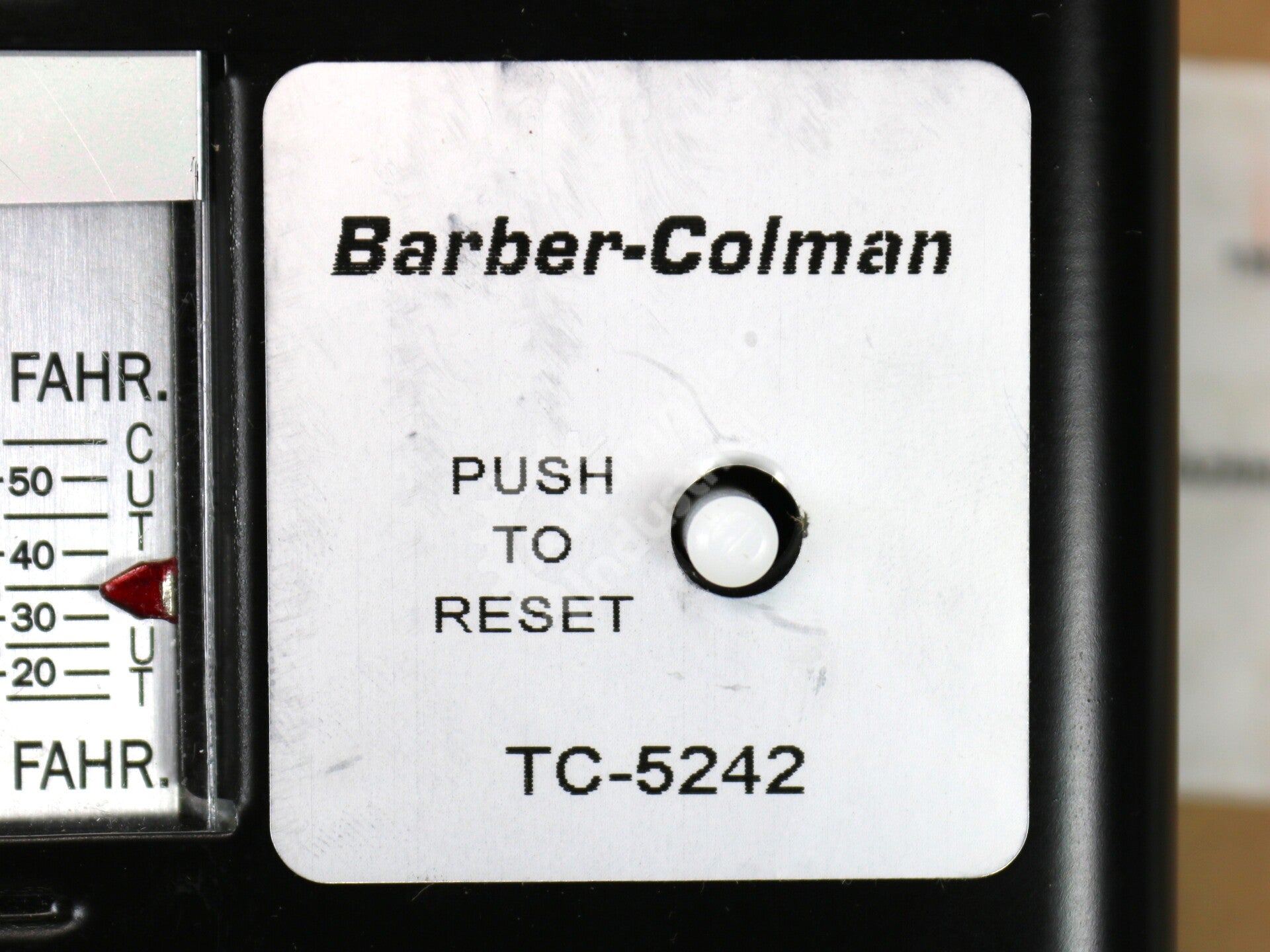

- The TC-5242 can be adjusted via a screwdriver.
-
Can the contact action be customized on the TC-5242?
- Yes, this action may be customized.
⭐⭐⭐⭐⭐ 5.0
The element cup on the TC-5242 makes this model especially resilient when compared with similar thermostats. While the temperature range is not the widest, the longevity and simplicity of adjustment sets this temperature control apart from most others. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
TC-5242 |
Description |

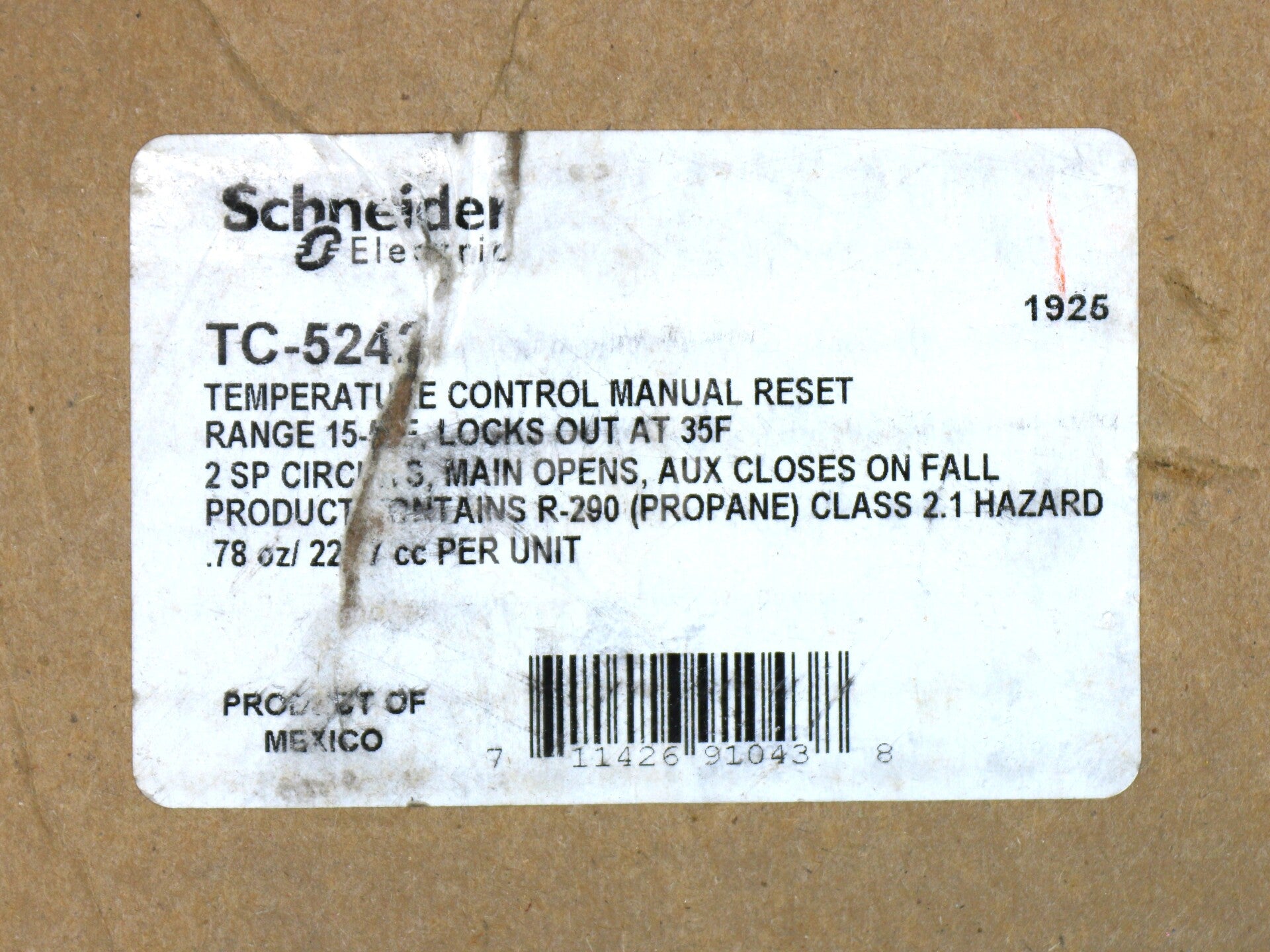

TC-5242 By Barber Colman Low-Limit Single-Pole Thermostat NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Unit Number | TC-5242 |
| OEM | Schneider Electric |
| Product Family | TC-52XX |
| Model Designation | Temperature Control |
| Functionality | Low Limit Thermostat |
| Poles | 1 |
| Temperature Range | 15° to 55°F |
| Electrical Contacts | 2x1 Pole Circuit |
| Differential Type | Lockout |
| Max Overrun Temperature | 400°F |
| Finish | Enamel |
| Weight | 2.5lbs |
Frequently Asked Questions | |
| How thick is the case of the TC-5242? The case is 0.062" thick, and the cover is 0.028" thick. | |
| How do you adjust the TC-5242? The TC-5242 can be adjusted via a screwdriver. | |
| Can the contact action be customized on the TC-5242? Yes, this action may be customized. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The element cup on the TC-5242 makes this model especially resilient when compared with similar thermostats. While the temperature range is not the widest, the longevity and simplicity of adjustment sets this temperature control apart from most others. -Automation Industrial Quality Assurance Manager |
|
