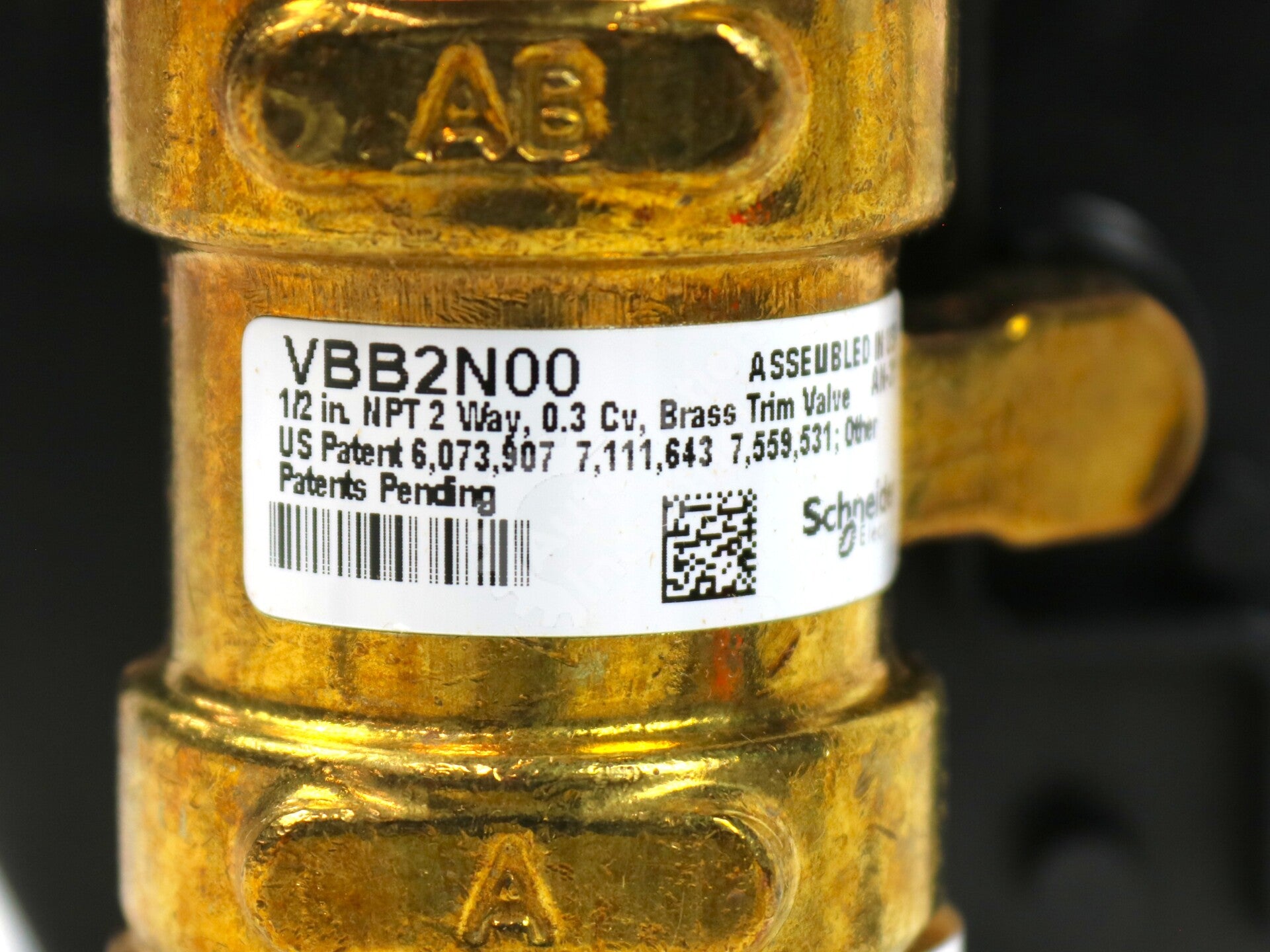

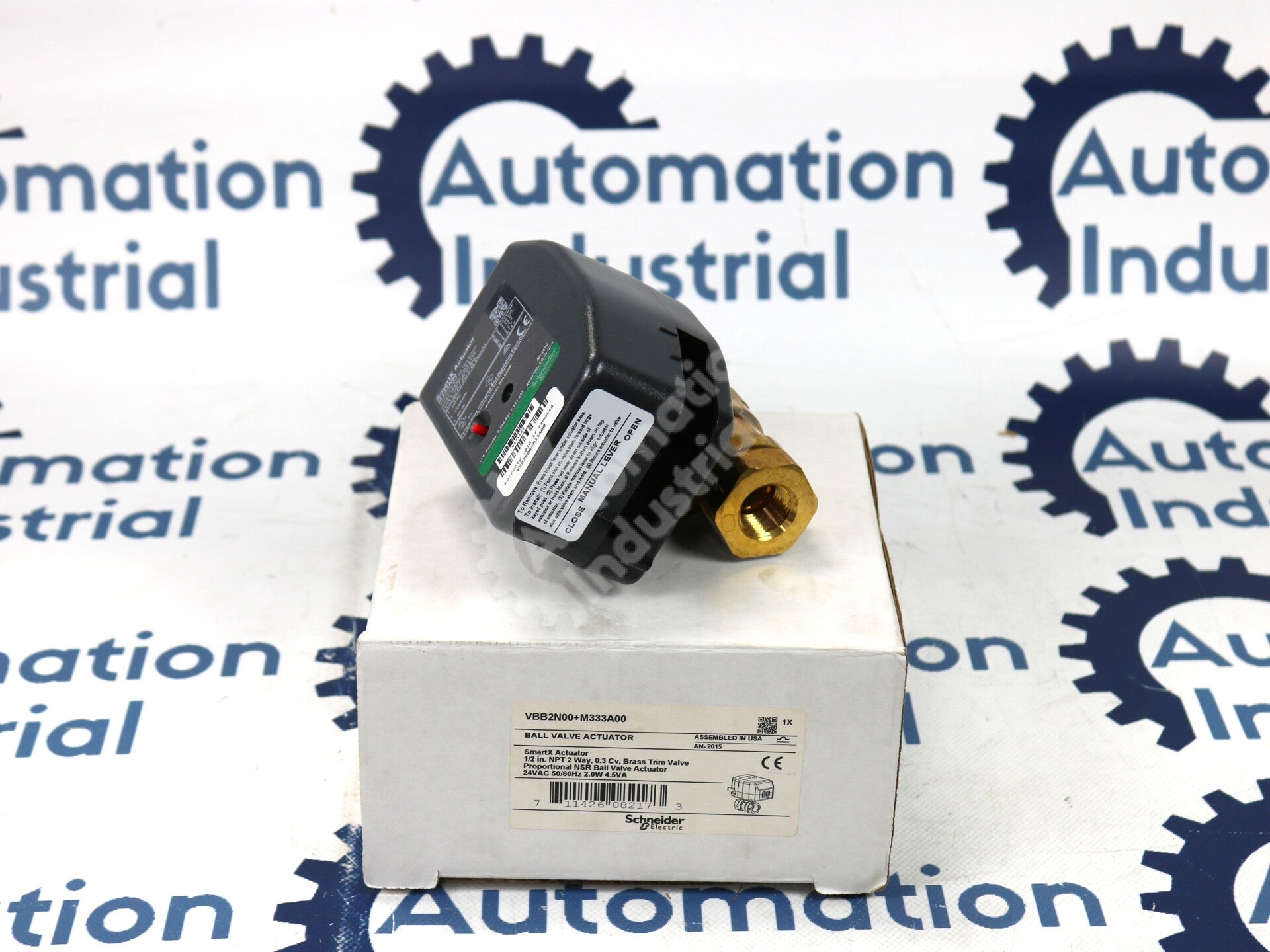

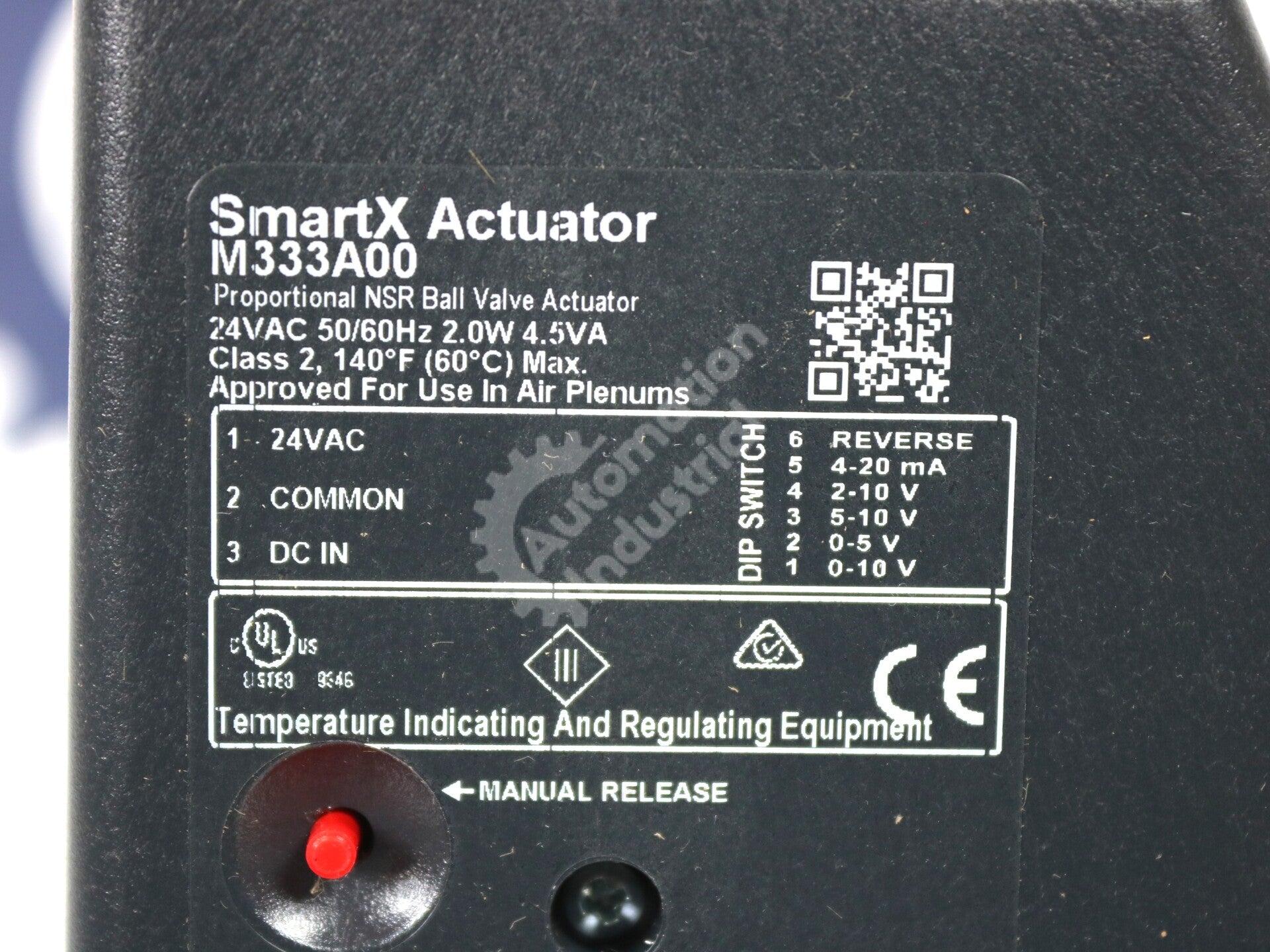

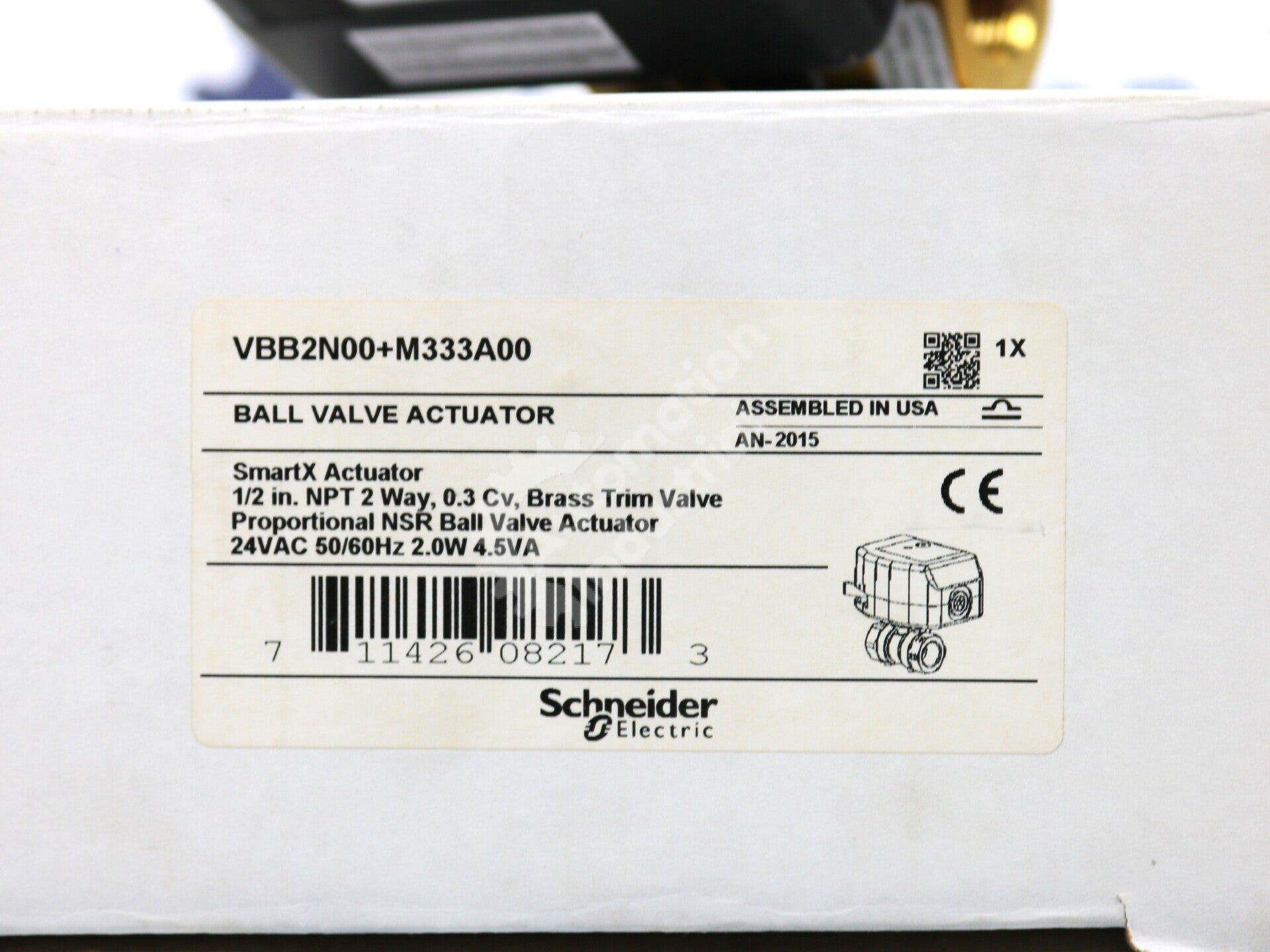

- Part Code: VBB2N00+M333A00
- Model Manufacturer: Schneider Electric
- Unit Series: SpaceLogic
- Product Description: Ball Valve/Actuator Assembly
- Valve Body Type: 2-Way
- Valve Body Size: 1/2"
- Cv: 0.3
- Kv: 0.3
- Actuator Type: Proportional
- Actuator Voltage Range: 0-5, 0-10, 2-10, 5-10VDC
- Actuator Current Range: 4-20mA
- Time-Out Delay: 200/166s
-
What material is the valve body trim on the VBB2N00+M333A00?
- The VBB2N00+M333A00 uses brass valve body trim.
-
What is the normal position for the valve on the VBB2N00+M333A00?
- The VBB2N00+M333A00 is a non-spring return model.
-
What type of leads does the VBB2N00+M333A00 use?
- The VBB2N00+M333A00 uses terminal block leads.
⭐⭐⭐⭐⭐ 5.0
The VBB2N00+M333A00 is specialized to have a lower flow coefficient and proportional actuator signal. Though these assemblies can be complex to operate, certain aspects such as the end thread and terminal leads are designed to be as streamlined to use as possible. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
VBB2N00+M333A00 SmartX Actuators |
Description |
VBB2N00+M333A00 By Schneider Electric 0.3Cv Ball Valve Actuator NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Part Code | VBB2N00+M333A00 |
| Model Manufacturer | Schneider Electric |
| Unit Series | SpaceLogic |
| Product Description | Ball Valve/Actuator Assembly |
| Valve Body Type | 2-Way |
| Valve Body Size | 1/2" |
| Cv | 0.3 |
| Kv | 0.3 |
| Actuator Type | Proportional |
| Actuator Voltage Range | 0-5, 0-10, 2-10, 5-10VDC |
| Actuator Current Range | 4-20mA |
| Time-Out Delay | 200/166s |
Frequently Asked Questions | |
| What material is the valve body trim on the VBB2N00+M333A00? The VBB2N00+M333A00 uses brass valve body trim. | |
| What is the normal position for the valve on the VBB2N00+M333A00? The VBB2N00+M333A00 is a non-spring return model. | |
| What type of leads does the VBB2N00+M333A00 use? The VBB2N00+M333A00 uses terminal block leads. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The VBB2N00+M333A00 is specialized to have a lower flow coefficient and proportional actuator signal. Though these assemblies can be complex to operate, certain aspects such as the end thread and terminal leads are designed to be as streamlined to use as possible. -Automation Industrial Quality Assurance Manager |
|
