- P/N: XPDO4
- Manufactured By: Schneider Electric
- Unit Family: xP Expansion Modules
- Module Type: Digital Output
- Outputs: 4
- Override Switches: Yes
- Output Type: Form C Relay
- Relay Type: SPST
- Max Current: 3A
- Voltage Rating: 24VAC/DC
- Accuracy: 0.1sec (PWM)
- Transients: ±1500V
-
How many override switches are there on the XPDO4?
- The XPDO4 has one switch per channel.
-
Does the XPDO4 have software feedback for these override switches?
- Yes, this feedback is provided by the XPDO4.
-
How much current is consumed by the XPDO4?
- The XPDO4 consumes a maximum of 100mA during operation.
⭐⭐⭐⭐⭐ 5.0
The XPDO4 is the superior version of xP digital output module in almost all cases. It offers more channels and better power efficiency than the 2-channel version without downgrading any functional characteristics. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
XPDO4 xP Expansion Modules |
Description |

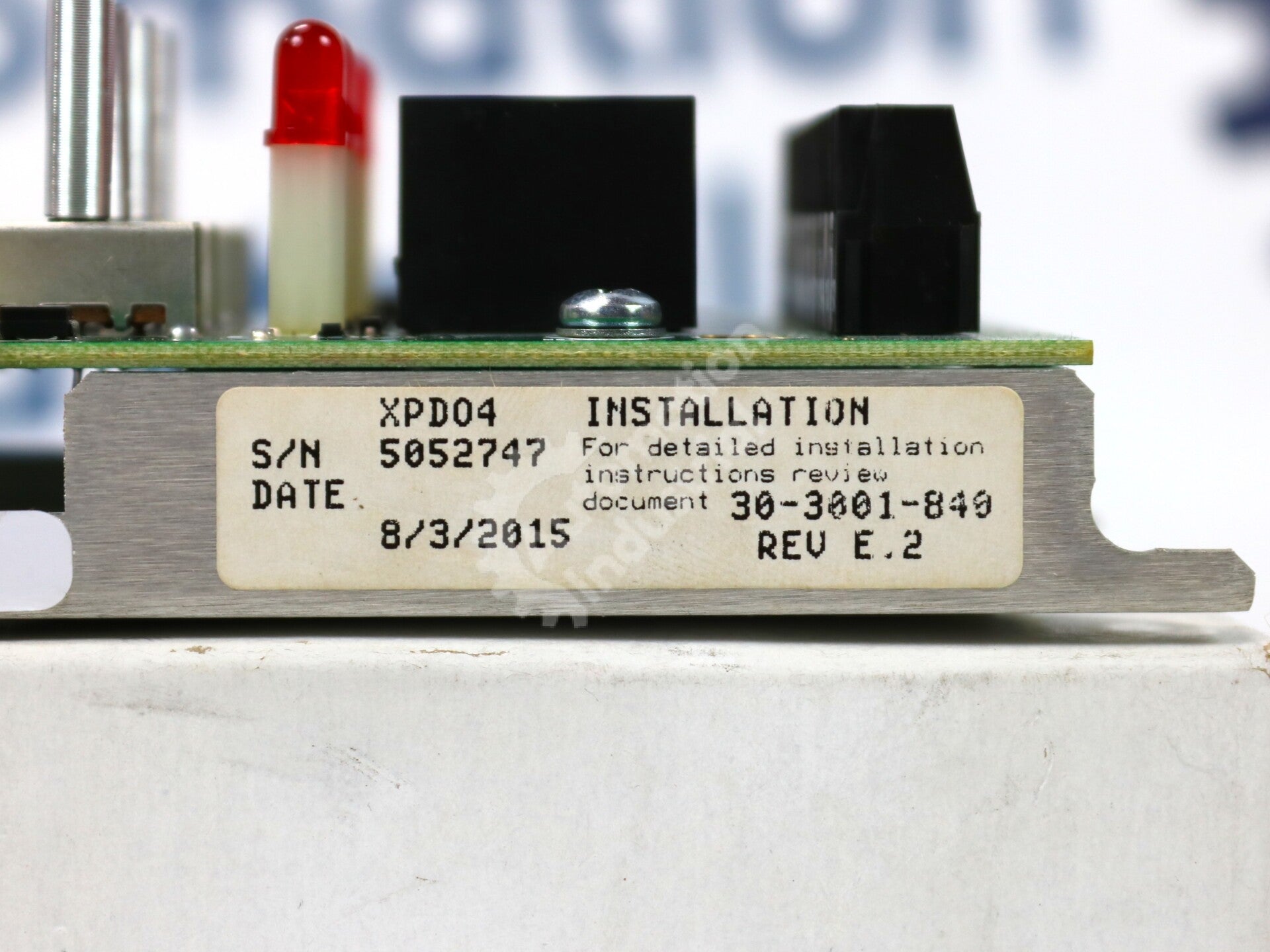

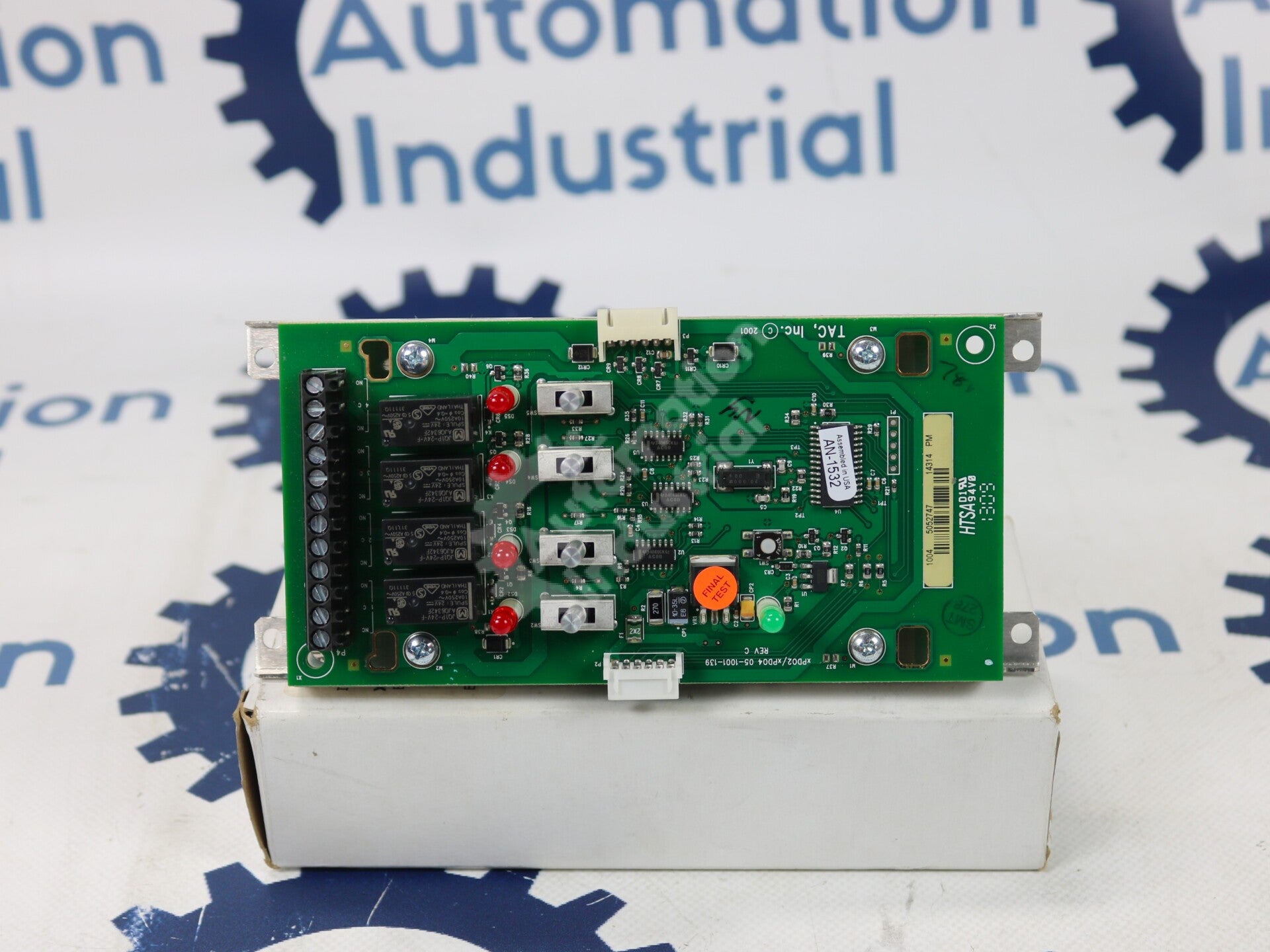

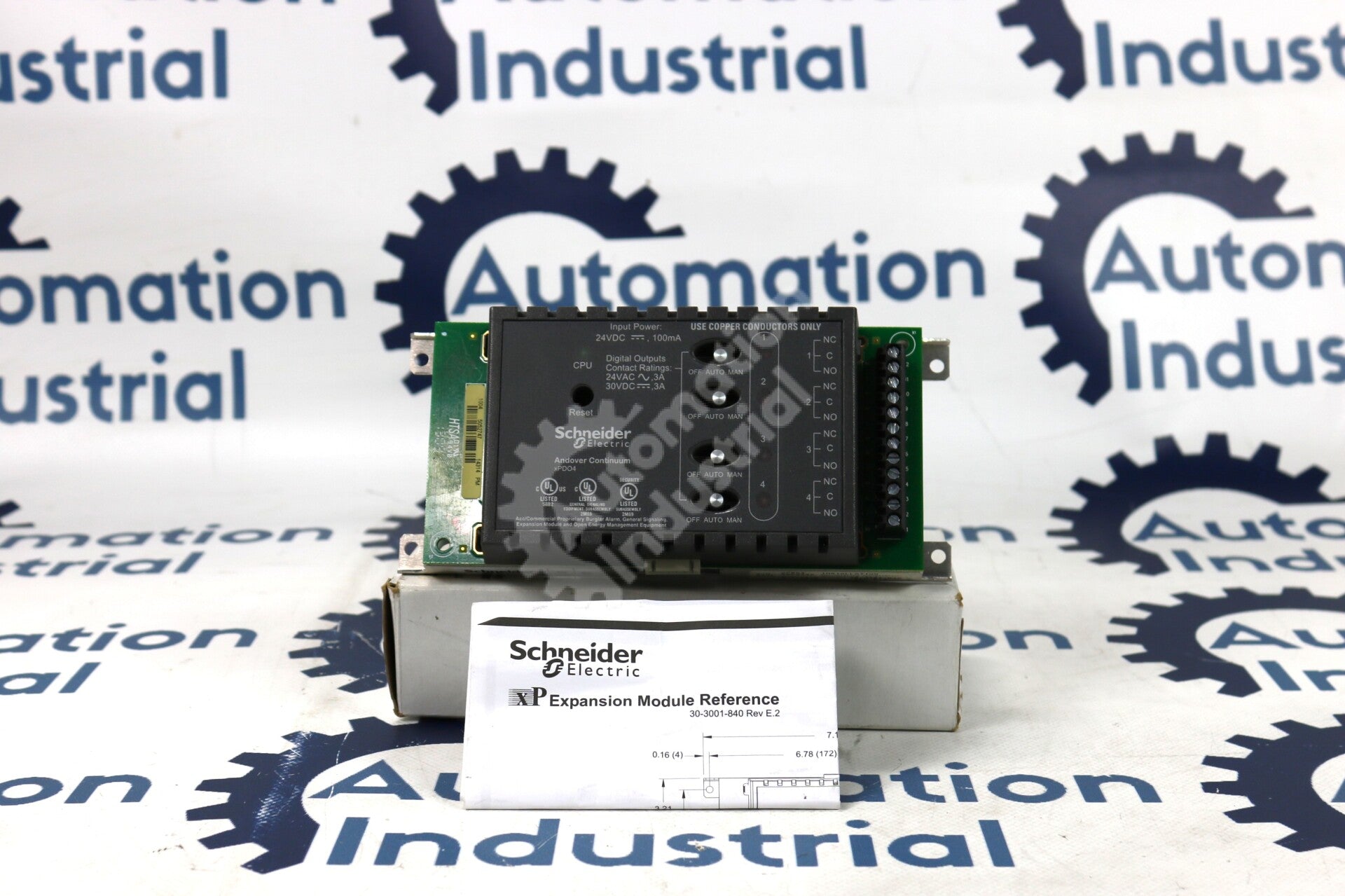

XPDO4 By Schneider Electric 4-Digtal Output Expansion Module w/ Overrides NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| P/N | XPDO4 |
| Manufactured By | Schneider Electric |
| Unit Family | xP Expansion Modules |
| Module Type | Digital Output |
| Outputs | 4 |
| Override Switches | Yes |
| Output Type | Form C Relay |
| Relay Type | SPST |
| Max Current | 3A |
| Voltage Rating | 24VAC/DC |
| Accuracy | 0.1sec (PWM) |
| Transients | ±1500V |
Frequently Asked Questions | |
| How many override switches are there on the XPDO4? The XPDO4 has one switch per channel. | |
| Does the XPDO4 have software feedback for these override switches? Yes, this feedback is provided by the XPDO4. | |
| How much current is consumed by the XPDO4? The XPDO4 consumes a maximum of 100mA during operation. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The XPDO4 is the superior version of xP digital output module in almost all cases. It offers more channels and better power efficiency than the 2-channel version without downgrading any functional characteristics. -Automation Industrial Quality Assurance Manager |
|
